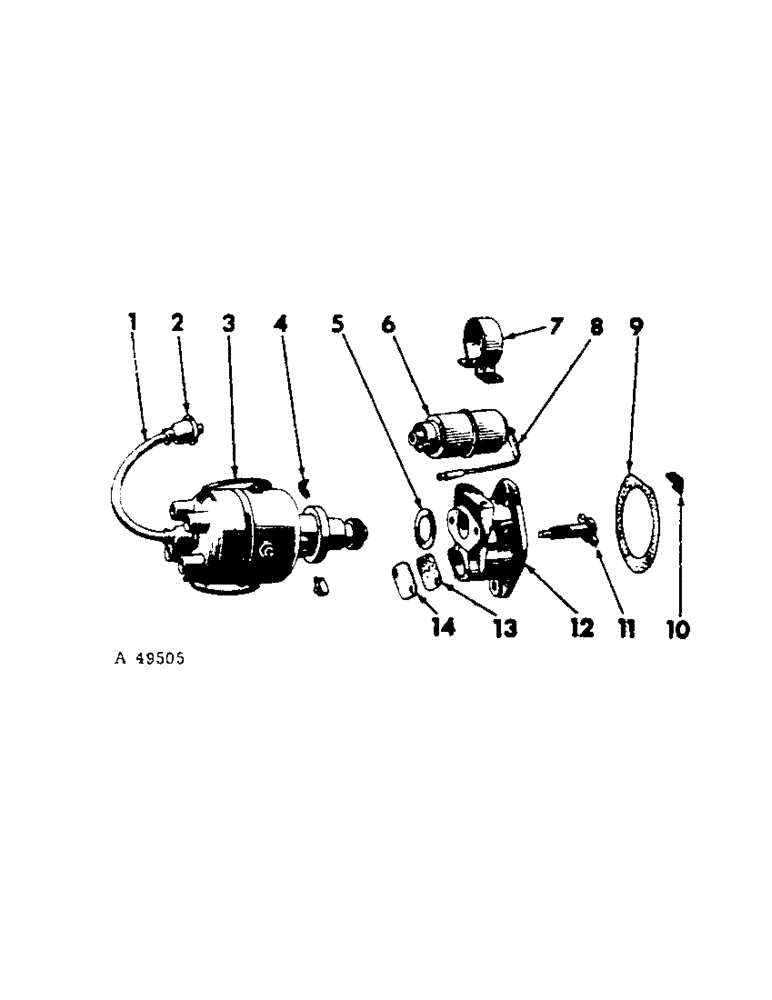

Запчасти Case IH 201 (A-051) - IGNITION UNIT, 6 VOLT, CARBURETED, NOT WISCONSIN (55) - ELECTRICAL SYSTEMS

1

356686R92

CABLE

coil to distributor secondary (includes 251553R1, nipples) (use w/396546R91, I.H. coil)

1шт.

1

373167R91

CABLE

coil to distributor secondary (includes 372875R1, nipples) (use w/385883R91, delco remy coil)

1шт.

2

251553R1

BOOT

NIPPLE, cable (w/356686R91, cable)

2шт.

2

372875R1

NIPPLE, LUBE

NIPPLE, cable (w/373167R91, cable)

2шт.

3

DISTRIBUTOR, Serial Range: (refer-"distributor")

1шт.

4

353937R1

CLIP

CLAMP, distributor

2шт.

BOLT, 5/16 x 7/8" cd-pltd type 2

2шт.

LK-WASH, 5/16" cd-pltd

2шт.

5

353936R2

GASKET

distributor

1шт.

6

396546R91

PACKAGE

COIL (I.H. less attaching clamp)

1шт.

NUT, no. 10-NF cd-pltd

2шт.

LK-WASH, no. 10 cd-pltd

2шт.

6

385883R91

COIL

(delco remy w/attaching clamp)

1шт.

BOLT, 5/16 x 1/2" cd-pltd type 2

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga

2шт.

LK-WASH, 5/16" cd-pltd

2шт.

7

353889R1

CLAMP

coil (I.H. coil)

1шт.

SCREW, no. 10-NF x 1-1/4" cd-pltd slt-rd-hd

1шт.

NUT, no. 10-NF cd-pltd sq

1шт.

BOLT, 5/16 x 1/2' cd-pltd type 2

2шт.

WASH, 11/32 x 11/16 x 16 ga cd-pltd

2шт.

LK-WASH, no. 10 cd-pltd

1шт.

LK-WASH, 5/16" cd-pltd

2шт.

8

357929R92

ELECTRIC CABLE

CABLE, coil to distributor primary

1шт.

9

46168DB

GASKET

distributor housing

1шт.

10

46868D

CLIP

distributor mounting

1шт.

11

353934R11

SHAFT

GEAR & SHAFT, distributor drive

1шт.

12

363763R11

HOUSING (includes 103883, plug)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

BOLT, 3/8 x 1-1/8" type 2

1шт.

BOLT, 3/8 x 1-3/8" type 2

1шт.

LK-WASH, 3/8"

2шт.

13

363765R1

GASKET

housing hole cover

1шт.

14

363764R1

COVER

housing hole

1шт.

SCREW, no. 10-NF x 9/16" cd-pltd slt-rd-hd

2шт.

LK-WASH, no. 10 cd-pltd

2шт.
