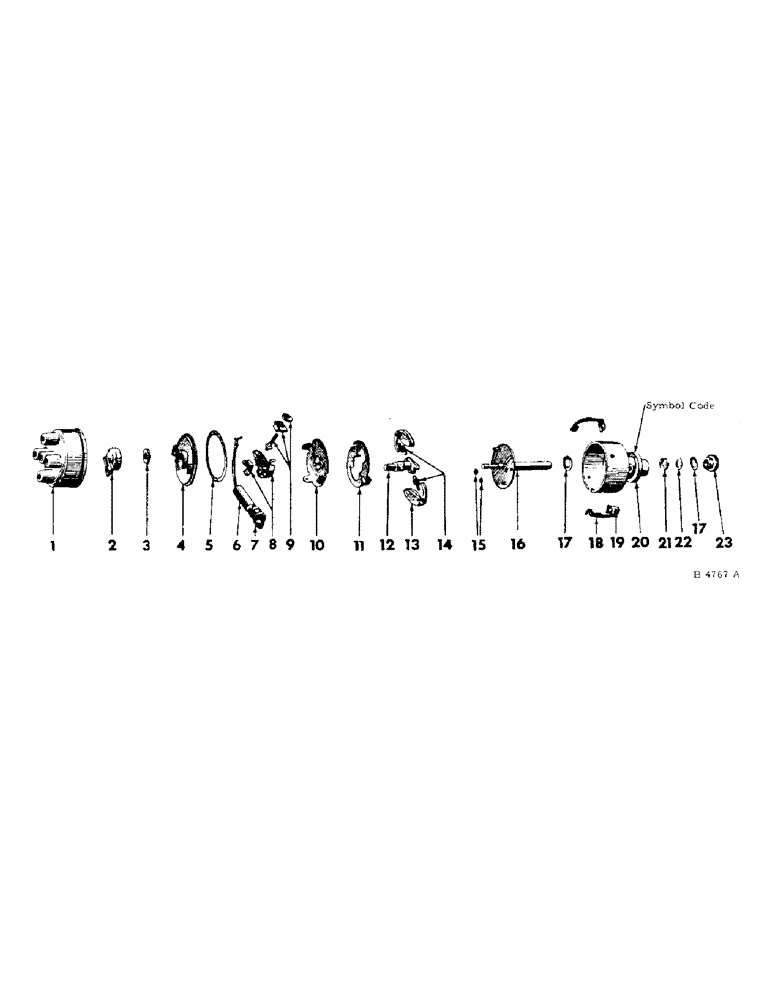

Запчасти Case IH 201 (A-050) - DISTRIBUTOR, 6 VOLT, CARBURETED, NOT WISCONSIN (55) - ELECTRICAL SYSTEMS

366928R91

DISTRIBUTOR

(prior to serial no. 24370)

1шт.

375423R91

DISTRIBUTOR (serial no. 24370 & up)

1шт.

1

351693R92

DISTRIBUTOR,Cap

CAP,. distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

FELT, breaker cover seat

1шт.

4

353900R11

COVER

breaker (includes 352284R2, gasket & 353901R2, seal)

1шт.

5

352284R2

GASKET

breaker cover

1шт.

6

353903R92

CONDENSER

1шт.

7

353905R1

CLAMP

condenser

1шт.

SCREW, no. 8 x 3/16" cd-pltd fil-hd

1шт.

LK-WASH, no. 8 cd-pltd

1шт.

8

353172R91

BREAKER

PACKAGE, distributor point service

1шт.

21394D

WASHER

WASH, terminal

1шт.

SCREW, no. 8 x 3/16" cd-pltd pan-hd

1шт.

NUT, no. 8 cd-pltd

1шт.

LK-WASH, no. 8 cd-pltd

1шт.

9

353907R1

STUD

SCREW, terminal

1шт.

21394D

WASHER

WASH, terminal

1шт.

353906R1

PLUG

INSULATOR, terminal

1шт.

251538R1

WASHER

WASH, insulating

1шт.

10

352277R11

PLATE

breaker

1шт.

SCREW, no. 8 x 3/8" cd-pltd slt-rd-hd

1шт.

LK-WASH, no. 8 x cd-pltd

1шт.

11

352302R1

FELT

GUARD, governor weight

1шт.

SCREW, no. 8 x 1/4" cd-pltd fil-hd

2шт.

LK-WASH, no. 8 cd-pltd

2шт.

12

355724R91

PACKAGE

CAM W/FELT, 355460R1

1шт.

13

353915R91

ARM

& WEIGHT

2шт.

14

366942R91

PACKAGE

SPRING, governor, Serial Range: (prior-24370)

1шт.

14

375425R91

PACKAGE

SPRING, governor (24370 & up)

1шт.

15

352293R1

SHIM

SPACER, weight arm

4шт.

16

354901R91

SHAFT

distributor, Serial Range: (prior-24370)

1шт.

16

362474R91

SHAFT

distributor (24370 & up)

1шт.

17

352298R1

THRUST WASHER

distributor thrust

2шт.

18

353894R1

VALVE SPRING

SPRING, distributor cap

2шт.

19

353895R1

SUPPORT

distributor cap spg

2шт.

SCREW, no. 8 x 3/8" cd-pltd slt-rd-hd

2шт.

LK-WASH, no. 8 cd-pltd

2шт.

20

353898R11

HOUSING

(includes 252739R1, oil seal; 125947, plug & 353899R1, retainer)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8" cd-pltd slt-hd pipe

1шт.

21

353899R1

STOP

RETAINER, shaft oil seal

1шт.

22

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

OIL SEAL, distributor shaft

1шт.

23

353902R1

GEAR

32T distributor

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

21372D

GREASE, distributor 1 oz. tube

1шт.

Not part of distributor or switch

1шт.
