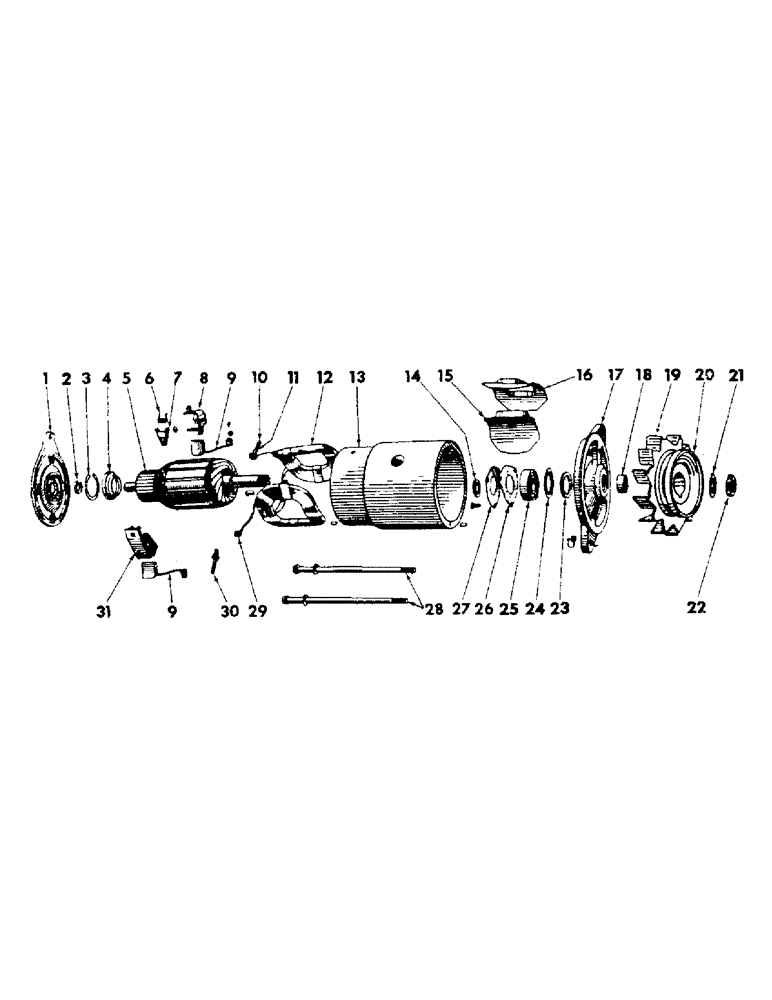

Запчасти Case IH 201 (A-049) - GENERATOR, 12 VOLT, DELCO REMY, USED 1962 TO 1966 (55) - ELECTRICAL SYSTEMS

1100428

GENERATOR W/ VOLTAGE REGULATOR (generate parts listed below; refer to voltage regulator for components of the regulator)

1шт.

BOLT W/NUT, 5/16 x 2" type 2

1шт.

Not part of generator

1шт.

BOLT W/NUT, 5/16 x 4" mach

1шт.

Not part of generator

1шт.

LK-WASH, 5/16"

2шт.

Not part of generator

1шт.

1

1958435

FRAME, commutator end (includes 809062, pin, 1947350 wick; 1880635, oiler; 815042, washer & 809960, cup)

1шт.

1911097

PLUG, commutator end

1шт.

1953202

RETAINER, oil seal

1шт.

1945697

GUARD ASSY.

OIL SEAL, frame end

1шт.

1880635

OILER

commutator end

1шт.

2

1945697

GUARD ASSY.

OIL SEAL, commutator end

1шт.

3

1947350

WICK

commutator end oil

1шт.

4

1953202

RETAINER, commutator end

1шт.

5

1928952

ARMATURE

1шт.

809960

CUP, felt retainer

1шт.

815042

WASH, felt

1шт.

6

1908829

SPRING

brush

2шт.

7

1944373

NOZZLE HOLDER

ARM, brush

2шт.

8

1922288

HOLDER

brush ground

1шт.

132979

SCREW, ground holder

1шт.

121743

CHAIN,#12 - 24

no. 12 cd-pltd

1шт.

131184

CONNECTING LINK

LK-WASH, no. 12 cd-pltd

1шт.

9

1932506

BRUSH, COMMUTATOR

BRUSH, generator

2шт.

454458

SPARE PART

brush mounting

2шт.

456413

BUCKET TOOTH

LK-WASH, brush screw

2шт.

10

1921860

STUD

terminal field

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd

2шт.

1881409

WASHER

WASH, stud

1шт.

1858753

WASHER

WASH, stud insulating

1шт.

1914579

LOCK WASHER

LK-WASH, stud

2шт.

11

1885090

BUSHING

terminal insulating

1шт.

12

1923625

COIL ASSY.

COIL, field (includes 200382, clip & 1921860, stud)

1шт.

1911480

LEAD, regulator

2шт.

13

FRAME (order 1-1100428, generator)

1шт.

809593

PIN

drive end dowel

1шт.

809062

PIN, commutator end dowel

1шт.

14

809945

BUSHING

WASHER, drive end space

1шт.

15

1914618

SHOE, pole

2шт.

1913960

SCREW

pole shoe

2шт.

16

1914491

INSULATOR, field coil

2шт.

17

1958434

FRAME, drive end (includes 1880641, oiler)

1шт.

125609

OILER

drive end

1шт.

823551

WICK, oiler felt

1шт.

18

1858603

BUSHING

COLLAR, drive end space

1шт.

19

1944437

FAN

drive end

1шт.

20

1961291

PULLEY

drive end

1шт.

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

21

1941978

WASHER

spg nut

1шт.

22

1915172

NUT

drive end shaft

1шт.

23

809961

FELT

WASHER, drive end felt

1шт.

24

819104

WASHER

PLATE, drive end retaining

1шт.

25

907503

BEARING

drive end

1шт.

26

1912008

FELT

GASKET, drive end retaining plate

1шт.

27

1911263

LARGE PLATE

PLATE, drive end brg retaining

1шт.

1914580

SCREW

retainer plate

3шт.

28

1908680

SET OF MAIN BRGS -

BOLT, drame through

2шт.

9421424

LOCK WASHER

LK-WASH, through bolt

2шт.

29

200382

CLIP, Serial Range: terminal-brush

1шт.

30

1921368

STUD, terminal armature

1шт.

1921362

BUSHING

terminal insulating

1шт.

121743

CHAIN,#12 - 24

no. 12 cd-pltd

2шт.

1881409

WASHER

WASH, stud

1шт.

1914579

LOCK WASHER

LK-WASH, stud

2шт.

31

1925379

NOZZLE HOLDER

HOLDER, brush insulated

1шт.

132979

SCREW, brush holder

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd

1шт.

131184

CONNECTING LINK

LK-WASH, no. 12 cd-pltd

1шт.
