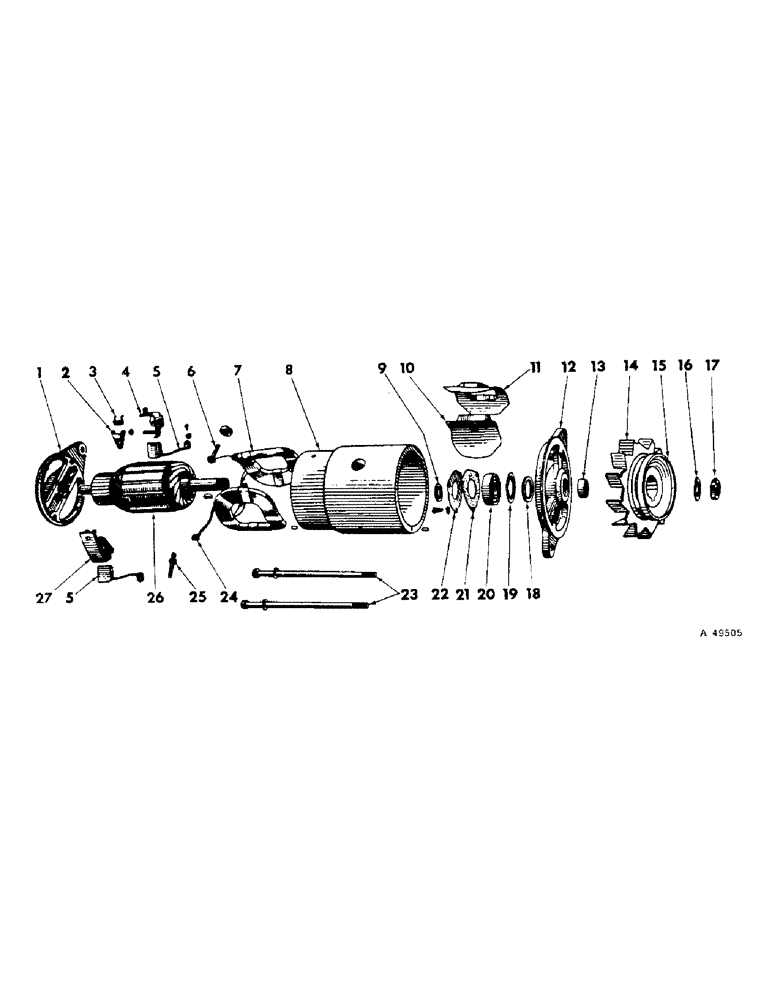

Запчасти Case IH 201 (A-048) - GENERATOR, 12 VOLT, DELCO REMY, USED 1961 TO 1962 (55) - ELECTRICAL SYSTEMS

1100370

GENERATOR W/VOLTAGE REGULATOR (generator parts listed below; refer to "voltage regulator" for components of the regulator)

1шт.

BOLT W/NUT, 5/16 x 2" type 2

1шт.

Not part of generator

1шт.

BOLT W/NUT, 5/16 x 4" mach

1шт.

Not part of generator

1шт.

LK-WASH, 5/16"

2шт.

Not part of generator

1шт.

1

1947614

FRAME, commutator end (includes 1927448, cup; 1880635, oiler; 809062, pin; 1927447, wash & 804080, wick)

1шт.

1880635

OILER

commutator end

1шт.

2

1878183

ARM

brush

1шт.

3

1916324

VALVE SPRING

SPRING, brush

1шт.

4

1922288

HOLDER

brush ground

1шт.

607893R1

WASHER

WASH, arm spacer

2шт.

132979

SCREW, ground holder

1шт.

122743

SHAFT

NUT, no. 12 cd-pltd

1шт.

131184

CONNECTING LINK

LK-WASH, no. 12 cd-pltd

1шт.

5

1933295

BRUSH, generator

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

brush mounting

2шт.

1904377

HALF SHAFT

LK-WASH, brush screw

2шт.

6

1921860

STUD

terminal field

1шт.

1885090

BUSHING

BUSH, terminal insulating

1шт.

1858753

WASHER

WASH, stud insulating

1шт.

1881409

WASHER

WASH, terminal stud

1шт.

1904661

LOCK WASHER

LK-WASH, terminal stud

1шт.

225-14112

NUT,#12-24

LK-WASH, no. 12 cd-pltd

2шт.

7

1923625

COIL ASSY.

COIL, field (includes 200382, clip & 1921860, stud)

1шт.

8

FRAME (order 1-1110428, generator) (NSS)

1шт.

809593

PIN

drive end dowel

1шт.

809062

PIN, commutator end dowel

1шт.

9

809945

BUSHING

WASHER, drive end space

1шт.

10

1914618

SHOE, pole

2шт.

1843648

SCREW, pole shoe

2шт.

11

1914491

INSULATOR, field coil

2шт.

12

1947867

FRAME, drive end (includes 1880641, oiler)

1шт.

823551

WICK, oiler felt

1шт.

1880641

OILER

drive end

1шт.

13

1858603

BUSHING

COLLAR, drive end space

1шт.

14

1944437

FAN

drive end

1шт.

15

1939886

SCREW

drive end

1шт.

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

16

1941978

WASHER

spring nut

1шт.

17

1911324

NUT

drive end shaft

1шт.

18

809961

FELT

WASHER, drive end felt

1шт.

19

819104

WASHER

PLATE, drive end retaining

1шт.

20

907503

BEARING

drive end

1шт.

21

1912008

FELT

GASKET, drive end retaining plate

1шт.

22

1911263

LARGE PLATE

PLATE, drive end brg retaining

1шт.

1914580

SCREW

retainer plate

3шт.

23

815018

BOLT, through

2шт.

120638

LOCK WASHER

LK-WASH, through bolt

2шт.

24

200382

CLIP, Serial Range: terminal-brush

1шт.

25

1921369

STUD

terminal armature

1шт.

1921362

BUSHING

BUSH, terminal insulating

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd

2шт.

1881409

WASHER

WASH, stud

1шт.

1904661

LOCK WASHER

LK-WASH, stud

2шт.

26

817807

ARMATURE

1шт.

1927448

CUP, felt retainer

1шт.

1927447

WASH, felt

1шт.

27

1922289

HOLDER

brush insulated

1шт.

132979

SCREW, brush holder

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd

1шт.

131184

CONNECTING LINK

LK-WASH, no. 12 cd-pltd

1шт.
