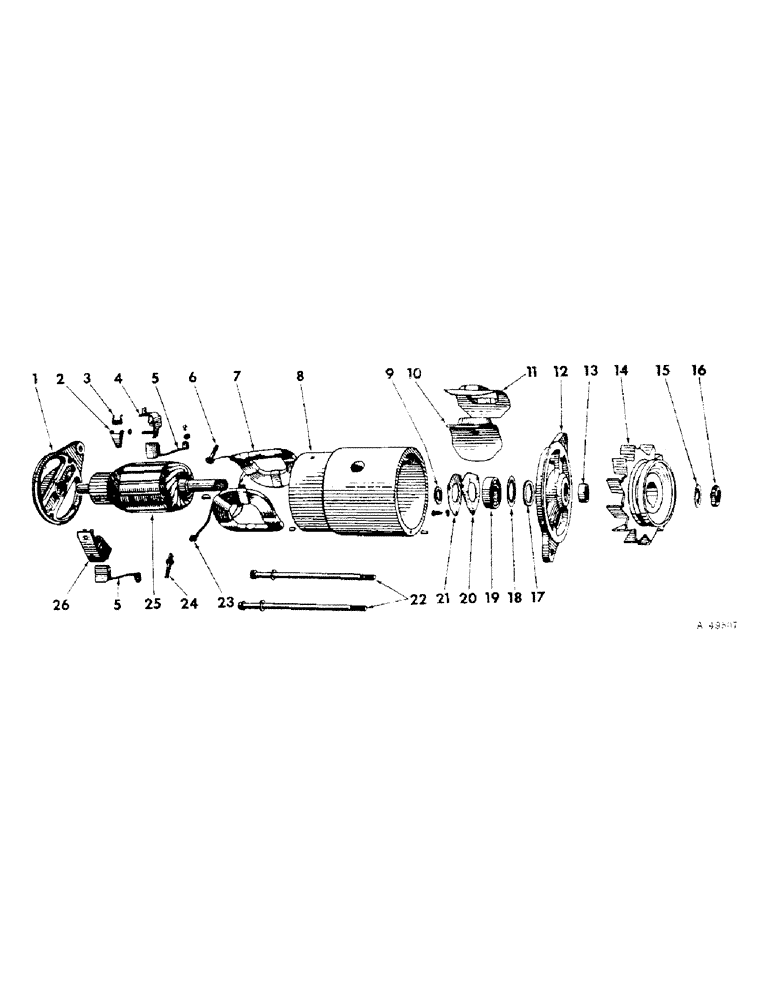

Запчасти Case IH 201 (A-047) - GENERATOR, 6 VOLT, DELCO-REMY, CARBURETED, NOT WISCONSIN (55) - ELECTRICAL SYSTEMS

1100052

SPARE PART GENERATOR (composed of parts listed below, unless otherwise noted)

1шт.

104449A1R

REMAN-GENERATOR

Remanufactured Generator, 6 volt 35 ampere

1шт.

104449A1C

CORE-GENERATOR

Return Number, 6 volt 35 ampere

1шт.

.

BOLT, 5/16 x 3/4" mach

1шт.

Not part of generator

1шт.

.

BOLT, 5/16 x 7/8" type 2

1шт.

Not part of generator

1шт.

.

BOLT W/NUT, 5/16 x 1-1/8" mach

1шт.

Not part of generator

1шт.

Q308

WASH, 11/32 x 7/8 x 16 ga

1шт.

Not part of generator

1шт.

.

LK-WASH, 5/16"

3шт.

Not part of generator

1шт.

1

1951512

HOUSING

FRAME, commutator end (includes 1880641, oiler; 1945697, oil seal; 809062, pin; 1947337, retainer & 1947350, wick)

1шт.

1945697

GUARD ASSY.

OIL SEAL, commutator end

1шт.

1947350

WICK

OIL WICK, commutator end

1шт.

2

1878183

ARM

ARM, brush

2шт.

3

1916324

VALVE SPRING

SPRING, brush

2шт.

4

1922288

HOLDER

HOLDER, brush ground

1шт.

132979

SPARE PART SCREW, brush holder

1шт.

607893R1

WASHER

WASH, arm space

2шт.

121743

CHAIN,#12 - 24

no. 12 cd-pltd

1шт.

131185

SUPPORT

SPARE PART LK-WASH, no. 12 cd-pltd

1шт.

5

1932506

BRUSH, COMMUTATOR

BRUSH BRUSH

2шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW, brush mounting

2шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

LK-WASH, brush screw

2шт.

6

1921860

STUD

STUD, terminal field

1шт.

1685090

BUSHING, stud insulating

1шт.

1881409

WASHER

WASH, terminal stud

1шт.

1858753

WASHER

WASH, stud insulating

1шт.

1904661

LOCK WASHER

LK-WASH, terminal stud

2шт.

225-14112

NUT,#12-24

no. 12 cd-pltd

2шт.

Not part of generator

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

2шт.

Not part of generator

1шт.

7

1921356

COIL, field

1шт.

8

FRAME (order 1-1100052, generator) (NSS)

1шт.

809593

PIN

PIN, drive end dowel

1шт.

809062

SPARE PART PIN, commutator end dowel

1шт.

9

809945

BUSHING

WASHER, drive end space

1шт.

10

1914618

SHOE, pole

2шт.

1843646

SCREW

SCREW, pole shoe

2шт.

11

1914491

INSULATOR, field coil

2шт.

12

1871693

SPARE PART FRAME, drive end (includes 1880642, oiler & 809593, pin)

1шт.

1880641

OILER

OILER, drive end

1шт.

823551

WICK, oiler felt

1шт.

13

1858603

BUSHING

COLLAR, drive end space

1шт.

14

1921939

PULLEY

FAN & PULLEY, generator

1шт.

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

15

1941978

WASHER

WASHER, spring nut

1шт.

16

1911324

NUT

NUT, drive end shaft

1шт.

17

809961

FELT

WASHER, drive end shaft

1шт.

18

819104

WASHER

PLATE, drive end retaining

1шт.

19

907503

BEARING

BEARING, drive end

1шт.

20

1912008

FELT

GASKET, drive end retaining plate

1шт.

21

1911263

LARGE PLATE

PLATE, LARGE PLATE, drive end retainer

1шт.

1904370

AXLE

retainer plate

3шт.

1880781

WASHER

LK-WASH, plate screw

3шт.

22

815018

BOLT, frame through

2шт.

120638

LOCK WASHER

LK-WASH, through bolt

2шт.

23

200382

SPARE PART CLIP, Serial Range: terminal-brush

1шт.

24

1921369

STUD

STUD, terminal armature

1шт.

1921362

BUSHING

BUSH, terminal insulating

1шт.

1881409

WASHER

WASH, terminal stud

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd

2шт.

1904661

LOCK WASHER

LK-WASH, stud

2шт.

25

1921351

SPARE PART ARMATURE

1шт.

1927448

CUP, felt retainer

1шт.

1927447

WASH, felt

1шт.

26

1922289

HOLDER

HOLDER, brush insulated

1шт.

132979

SPARE PART SCREW, brush holder

1шт.

121743

CHAIN,#12 - 24

no. 12 cd-pltd

1шт.

131184

CONNECTING LINK

LK-WASH, no. 12 cd-pltd

1шт.
