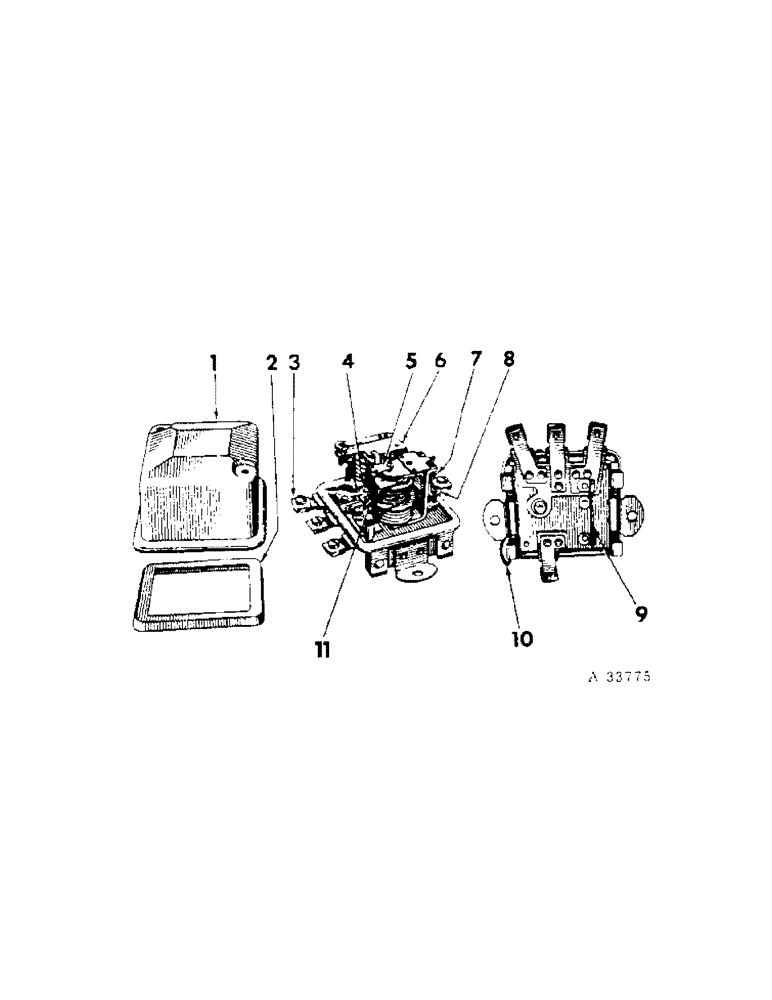

Запчасти Case IH 201 (A-046) - VOLTAGE REGULATOR, 6 VOLT, DELCO REMY, NOT WISCONSIN (55) - ELECTRICAL SYSTEMS

1119575

REGULATOR

voltage (includes parts listed, unless noted)

1шт.

BOLT, 1/4 x 1/2" type 2

2шт.

LK-WASH, 1/4"

2шт.

1

1927980

COVER, regulator

1шт.

1927982

SCREW, cover attaching

2шт.

1922996

WASH, attaching screw

2шт.

2

1953902

GASKET, regulator cover

1шт.

3

1868137

CLAMP, terminal

4шт.

1864099

SCREW

terminal clamp

4шт.

4

1912159

SCREW, relay armature adjusting

1шт.

5

1878517

CONTACT, voltage regulator

1шт.

1878516

SCREW

contact attaching

2шт.

1878505

WASHER

LK-WASH, attaching screw

2шт.

6

1878780

ARMATURE, regulator relay

1шт.

454431

SCREW, armature attaching

2шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASH, attaching screw

2шт.

7

1912176

SPRING, regulator

1шт.

8

1922408

SCREW, regulator adjusting

1шт.

9

1910183

RESISTOR, regulator

1шт.

10

1927975

LEAD, ground

1шт.

11

1922599

INSULATOR, attaching screw

1шт.

1118791

REGULATOR

voltage (composed of parts listed below, unless otherwise noted)

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, regulator attaching

2шт.

Not part of regulator

1шт.

1856056

WASHER

WASH, attaching screw

2шт.

Not part of regulator

1шт.

493-41020

LOCK WASHER,Ext Tooth, #10

LK-WASH, attaching screw

2шт.

Not part of regulator

1шт.
