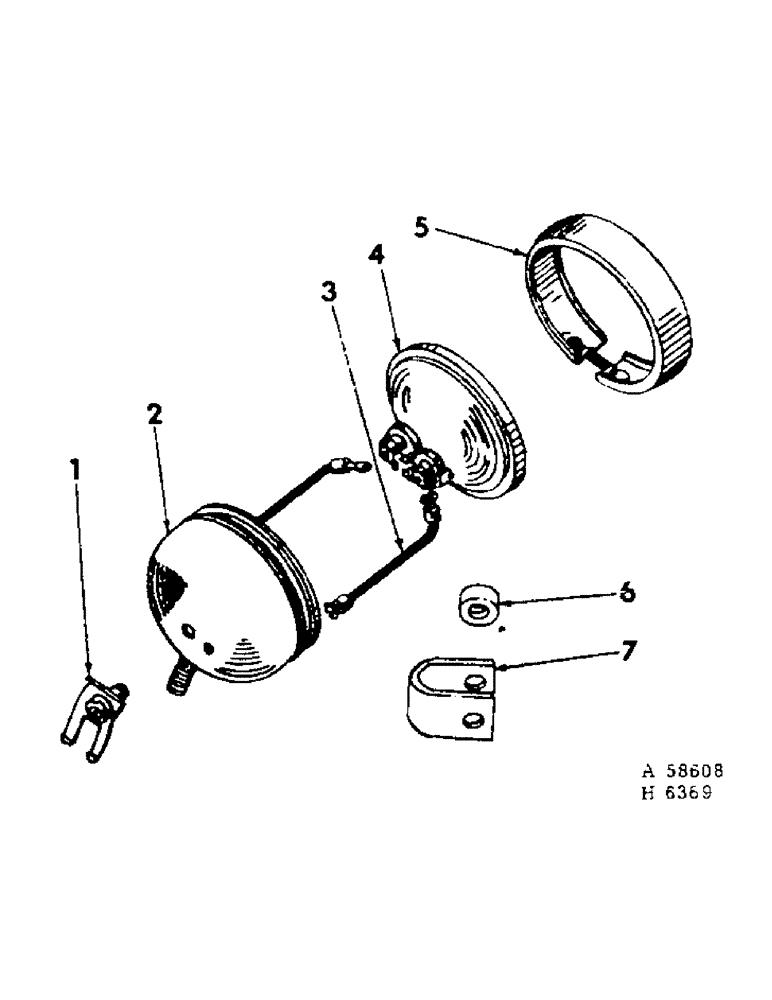

Запчасти Case IH 201 (A-045) - HEADLIGHT, 6 AND 12 VOLT (55) - ELECTRICAL SYSTEMS

HEADLIGHT (includes parts listed, unless noted)

1шт.

For service of complete 6 volt headlight order 1-381181R91, lamp; 1-381182R91, cable & 1-365503R1, spacer. For service of complete 12 volt headlight order 1-376849R91, lamp; 1-381182R91, cable & 1-365503R91, spacer\n+Not part of starting motor or headlight

1шт.

NUT, 1/2"

2шт.

Not part of starting motor or headlight

1шт.

LK-WASH, 1/2"

2шт.

Not part of starting motor or headlight

1шт.

1

365664R91

ELEC CONNECTOR

CLIP, block & spg (dietz)

1шт.

1

68417D

INSULATOR

PACKAGE, terminal plate service (guide lamp) (includes 79407H, plate; 121749, screws; 79408H, spg & 138530, washers)

1шт.

2

BODY (see note) (NSS)

1шт.

3

373311R91

WIRE, block to beam unit (dietz)

1шт.

3

375657R91

WIRE, block to beam unit (guide lamp)

1шт.

4

373661R91

LAMP BASE

SEALED BEAM, 6 volt

1шт.

4

373662R91

LAMP

SEALED BEAM, 12 volt

1шт.

5

371450R91

BEZEL

MOULDING, headlight (dietz)

1шт.

SCREW, no. 8 x 1-1/4" slt-fil-hd

1шт.

LK-WASH, no. 8

1шт.

5

371451R91

MOLDING

MOUDING, headlight (guide lamp)

1шт.

53526D

SCREW

moulding

1шт.

6

49069D

SPACER

headlight mounting

2шт.

Not part of starting motor or headlight

1шт.

7

561916R1

CLAMP, headlight

2шт.

Not part of starting motor or headlight

1шт.
