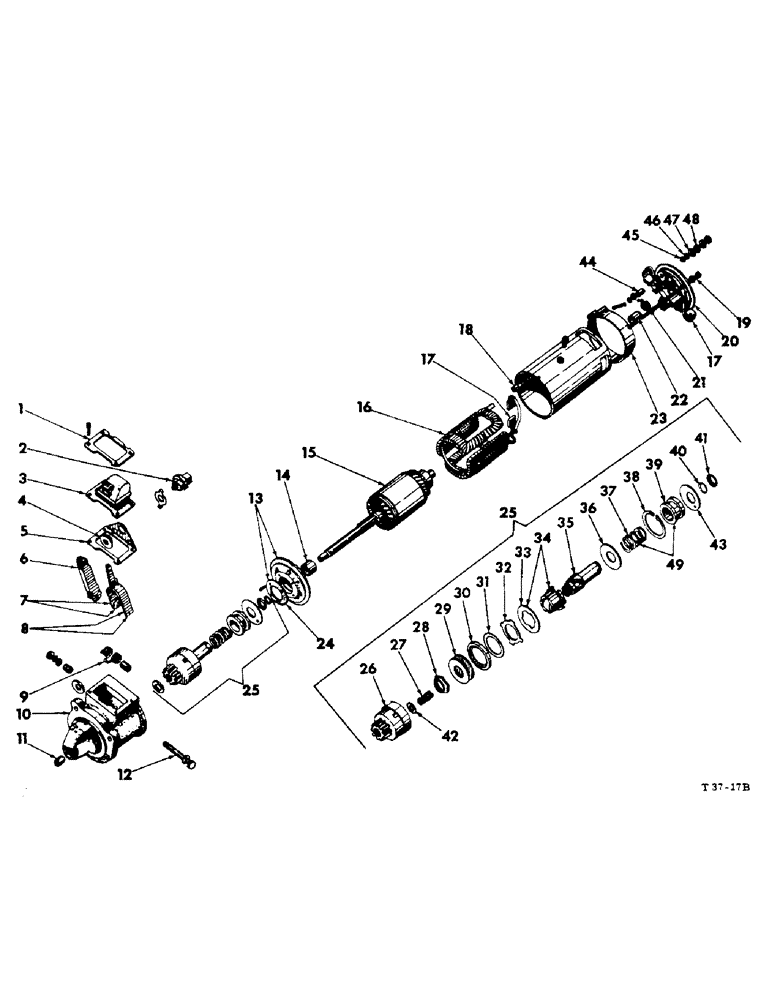

Запчасти Case IH 201 (A-044) - STARTING MOTOR, 12 VOLT, LUCAS (55) - ELECTRICAL SYSTEMS

704447R94

MOTOR

12 volt starting (includes parts listed w/note D) (refer to vendor no. for applicable motor & parts) (parts less note used on all motors)

1шт.

BOLT, 3/8 x 1" type 2

2шт.

Not part of starting motor or headlight

1шт.

NUT, 3/8"

1шт.

Not part of starting motor or headlight

1шт.

WASHER, LOCK, 3/8"

3шт.

Not part of starting motor or headlight

1шт.

1

3045651R1

PLATE, dust cover

1шт.

2

705858R91

SWITCH

starting

1шт.

704447R91, motor (lucas no. 26132A), 704447R92

1шт.

2

705383R91

SWITCH

starting

1шт.

704447R92, motor (lucas no. 26132E), 704447R93, motor (lucas no. 26132J), 704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

705385R1

TAG

PLATE, switch locking

1шт.

3

705859R1

COVER

rubber dust

1шт.

4

705384R1

NUT

switch fixing

1шт.

704447R91, motor (lucas no. 26132A), 704447R92, motor (lucas no. 26132E), 704447R93, motor (lucas no. 26132J)

1шт.

4

3062341R1

NUT, switch fixing

1шт.

704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

5

3045650R1

BRACKET, switch fixing

1шт.

6

705836R92

LEVER, top & stirrup

1шт.

704447R91, motor (lucas no. 26132A), 704447R92, motor (lucas no. 26132E)

1шт.

6

3047390R91

LEVER, top & stirrup

1шт.

704447R93, motor (lucas no. 26132J), 704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

7

705835R92

LEVER, operating drive w/shoes

1шт.

3045649R1

COLLAR, lever distance

1шт.

8

SET, shoes (order 705835R92, lever) (NSS)

1шт.

9

705838R1

SPRING, lever return

1шт.

10

705850R92

BRACKET, drive end

1шт.

704447R91, motor (lucas no. 26132A), 704447R92, motor (lucas no. 26132E)

1шт.

10

3047391R91

BRACKET, drive end

1шт.

704447R93, motor (lucas no. 26132J) , 704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

11

705851R2

BUSHING

end bracket

1шт.

704447R91, motor (lucas no. 26132A), 704447R92, motor (lucas no. 26132E)

1шт.

11

3047392R1

BUSHING

end bracket

1шт.

704447R93, motor (lucas no. 26132J), 704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

12

3045648R1

BOLT, lever pivot

1шт.

13

705852R92

BRACKET, brake

1шт.

704447R91, motor (lucas no. 26132A), 704447R92, motor (lucas no. 26132E)

1шт.

13

3047393R91

BRACKET

brake

1шт.

704447R93, motor (lucas no. 26132J), 704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

14

705853R2

BUSHING

brake bracket

1шт.

704447R91, motor (lucas no. 26132A), 704447R92, motor (lucas no. 26132E)

1шт.

14

3047394R1

BUSHING

brake bracket

1шт.

704447R93, motor (lucas no. 26132J), 704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

15

705854R92

ARMATURE

1шт.

704447R91, motor (lucas no. 26132A), 704447R92, motor (lucas no. 26132E)

1шт.

15

3047395R91

ARMATURE

1шт.

704447R93, motor (lucas no. 26132J), 704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

16

705855R91

COIL

motor field

1шт.

17

705833R91

BRUSH, COMMUTATOR

SET, motor brush

1шт.

18

705856R1

TERMINAL STRIP

TERMINAL, field

1шт.

19

705857R1

BOLT, through

2шт.

704447R91, motor (lucas no. 26132A), 704447R92, motor (lucas no. 26132E), 704447R93, motor (lucas no. 26132J)

1шт.

19

3062339R91

BOLT

through

2шт.

704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

20

705834R91

BEARING

BRACKET, commutator

1шт.

704447R91, motor (lucas no. 26132A), 704447R92, motor (lucas no. 26132E), 704447R93, motor (lucas no. 26132J)

1шт.

20

3062340R91

BRACKET

commutator

1шт.

704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

21

3043618R91

VALVE SPRING

SET, bruch tension spg service

1шт.

22

702006R1

BUSHING

bracket

1шт.

23

705830R91

BAND, motor covering

1шт.

3045647R1

SCREW, band fixing

1шт.

705832R1

NUT

fixing screw

1шт.

24

3045655R91

WASHER W/RIVETS, brake

1шт.

25

3045652R91

DRIVE

starting motor (includes parts reference no's. 26 to 43, inclusive)

1шт.

26

705844R91

CYLINDER

PINION & BARREL, drive

1шт.

3045663R1

BUSH, pinion

1шт.

27

3045666R1

SPRING, cushioning pinion

1шт.

28

705845R1

NUT, pressure plate locking

1шт.

29

3045665R1

PLATE, pressure

2шт.

30

3045664R1

RING, clutch plate rear

1шт.

31

705848R91

SHIM

PACKAGE, clutch adjusting shim

1шт.

32

705846R91

PLATE

SET, clutch plates

1шт.

33

3045654R1

PLATE, support inner race

1шт.

34

3045653R91

SET, race (includes 3045654R1, plate)

1шт.

35

705841R91

SLEEVE W/BUSHING, drive

1шт.

36

3045662R1

PLATE, clutch retaining

1шт.

37

3045660R1

SPRING, bushing tension

1шт.

38

3045661R1

CIRCLIP, clutch retaining

1шт.

39

3045659R1

BUSHING, operating drive

1шт.

40

705842R1

RING, clutch plate retaining

1шт.

41

705843R1

CUP, retaining ring

1шт.

42

3047647R1

WASHER, thrust

1шт.

43

3047648R1

PLATE, brake

1шт.

44

3063227R1

SLEEVE, terminal field

1шт.

704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

45

3063231R1

WASHER

terminal

1шт.

704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

46

3063230R1

WASHER, terminal

1шт.

704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

47

3063229R1

WASHER, terminal

1шт.

704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

48

3063228R1

NUT, terminal

2шт.

704447R94, motor (lucas no. 26132N)\n+Not part of starting motor or headlight

1шт.

49

3045672R91

PACKAGE, bush & tension spg service (includes 3045659R1, bush & 3045660R1, spg)

1шт.

705860R91

PACKAGE

SUNDRY PARTS SET composed of: (1) terminal 3045658R1, (2) bolt 179840, (1) nut 102635, (3) lockwasher 103321

1шт.
