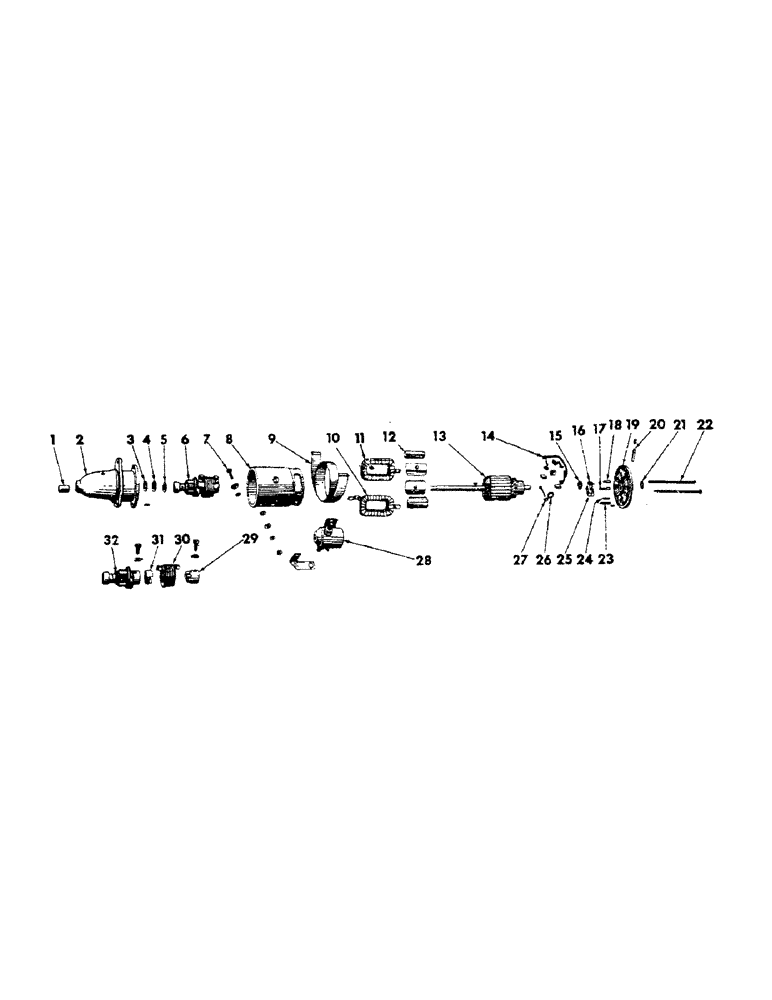

Запчасти Case IH 201 (A-043) - STARTING MOTOR, 6 VOLT, DELCO REMY (55) - ELECTRICAL SYSTEMS

1107999

MOTOR, starting 6 volt (includes parts listed, unless otherwise noted)

1шт.

BOLT, 1/2 x 1-1/4" type 2

2шт.

Not part of starting motor

1шт.

LK-WASH, 1/2"

2шт.

Not part of starting motor

1шт.

1

810620

BUSHING

drive end housing

1шт.

2

1922154

HOUSING, drive end (includes 810620, bushing)

1шт.

809593

PIN

housing dowel

1шт.

3

833602

WASHER

9/16 x 63/64 x 1/16"

1шт.

4

1849774

WASHER

5/8 x 1-1/16 x 3/32"

1шт.

5

809815

WASHER

5/8 x 1-1/16 x 1/16"

1шт.

6

1882486

DRIVE

MOTOR, drive (no's. 29 to 32 inclusive)

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Drive end #6, 5/32" x 5/8", HT

1шт.

7

1848837

STUD

terminal

1шт.

1861076

WASHER

WASH, 3/4" OD insulating

2шт.

1904669

WASHER

WASH, 9/16" OD insulating

2шт.

805258

NUT

terminal stud

2шт.

805790

WASHER

WASH, terminal stud

1шт.

120381

WASHER

LK-WASH, stud

2шт.

8

FRAME (order 1-1107999, motor) (NSS)

1шт.

9

1886923

BAND

(includes nut & screw)

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no. 10-NF x 1-1/4" slt-rd-hd, cd-pltd

1шт.

120641

NUT, no. 10-NF cd-pltd

1шт.

10

826281

COIL, field lower

1шт.

11

826282

COIL, field upper

1шт.

12

810601

SHOE, pole

4шт.

1881869

SCREW

pole shoe

4шт.

13

818002

ARMATURE

1шт.

14

819362

CABLE

LEAD, brush & field connector

1шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

brush & connector

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

833602

WASHER

commutator end space

1шт.

16

812512

SPRING, brush

4шт.

17

812016

PIN

brush holder & insulator

2шт.

18

812015

PIN

brush holder stop & insulator

2шт.

19

1881627

FUNNEL

FRAME, commutator end (includes 1880642, oiler; 812015, 812016, 817313 & 817314, pins; 1865182, plug & 802694, wick)

1шт.

20

1880642

OILER, commutator end

1шт.

802694

NOZZLE

WICK, commutator oil

1шт.

21

1865182

PLUG, frame expansion

1шт.

22

809053

BOLT, frame through

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

817313

PIN, brush holder hinge

2шт.

24

817314

PIN, brush holder stop

2шт.

25

810226

HOLDER

brush

4шт.

26

811553

BRUSH

4шт.

115903

SCREW

armature brush

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

4шт.

27

613554

PANEL

LEAD, brush ground

2шт.

122159

HOUSING

SCREW, ground lead

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

28

1465

SWITCH

solenoid (includes 120662 & 154566 nuts & 120381 & 1904615, washers)

1шт.

120622

NUT,#8-32

1шт.

280136

NUT,3/8"-16, G8

2шт.

1906859

SCREW, solenoid mounting

2шт.

120561

LK-WASH, 3/8" cd-pltd

2шт.

812622

WASHER

WASH, 3/8 x 11/16 x 1/32" cd-pltd

1шт.

1904615

RING

LK-WASH, no. 8

1шт.

29

1848530

HEAD, motor drive

1шт.

30

1850812

SPRING, motor drive

1шт.

1850811

SCREW

drive spg (head)

1шт.

1850810

SCREW, drive spg (shaft)

1шт.

805057

LK-WASH, drive spg screw

2шт.

31

1861234

RING, motor drive

1шт.

32

1881232

GEAR & SHAFT, motor drive

1шт.
