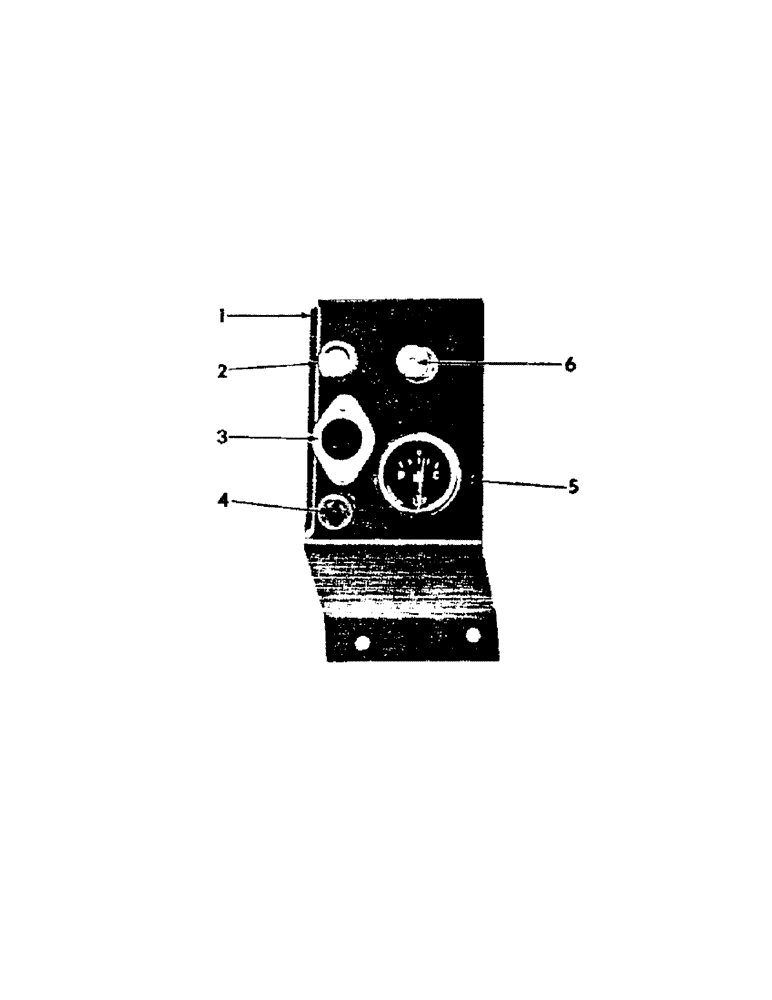

Запчасти Case IH 201 (A-026) - INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

613212R1

PANEL, instrument

1шт.

2

613215R91

CABLE, choke (w/knob)

1шт.

3

366317R91

IGNITION SWITCH

BUTTON, starter

1шт.

SCREW, no. 10 x 7/16" cd-pltd slt-rd-hd

2шт.

NUT, no. 10 cd-pltd sq

2шт.

LK-WASHER, no. 10 cd-pltd

2шт.

The parts listed below and on pages 26 to 29, inclusive are peculiar and applicable to 201 Windrower machines equipped with a Wisconsin Engine. This engine is not recommended for use with the Auger Platform, but can be used with the Edible Green Pea Cutter Bar.

1шт.

4

62801DC

SWITCH

light

1шт.

5

350053R92

AMMETER, ignition

1шт.

6

62801DC

SWITCH

ignition

1шт.

21053R1

WASHER

19/32 x 1-1/4 x 11 ga cd-pltd

1шт.
