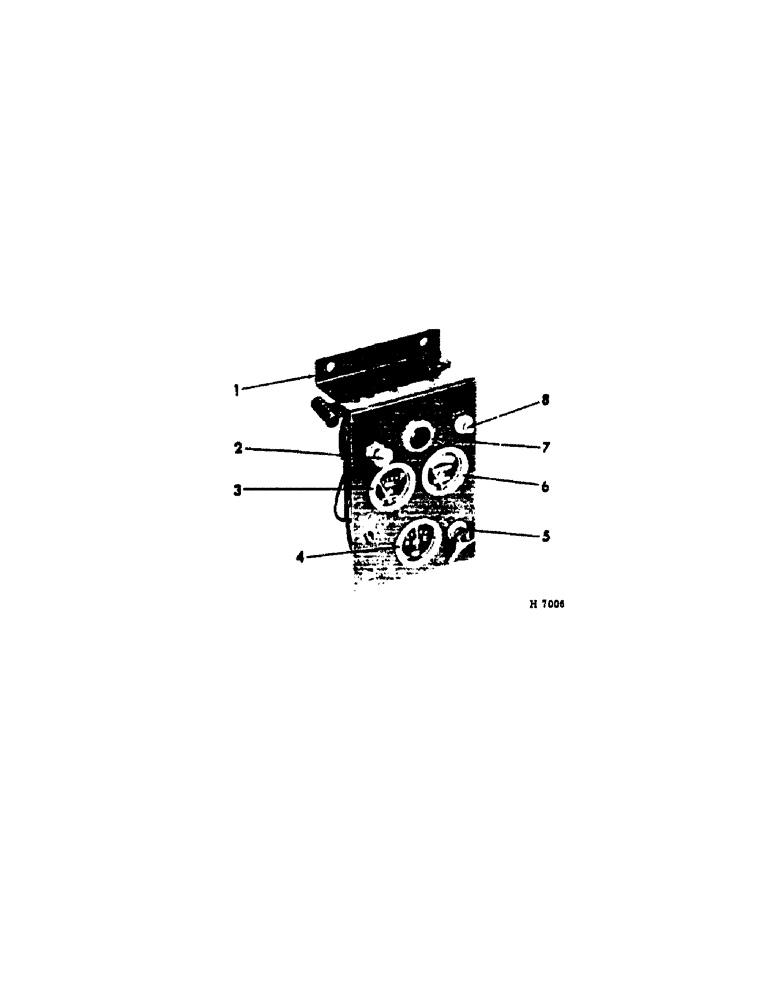

Запчасти Case IH 201 (A-022[A]) - INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

614107R11

PANEL, instrument

1шт.

BOLT W/NUT, 3/8 x 3/4" mach

2шт.

BOLT, 1/2 x 3/4" type 2

2шт.

11002VA

WASHER

WASH, 17/32 x 7/8 x 16 ga

1шт.

LK-WASH, 3/8"

2шт.

LK-WASH, 1/2"

2шт.

C-PIN, 3/16 x 1"

1шт.

2

62801DC

SWITCH

light

1шт.

3

362039R94

GAUGE

oil pressure

1шт.

372632A1

SPRING

no.12

1шт.

125750

LK-WASH, no. 12 ex-tooth

2шт.

4

360053R92

INDICATOR

AMMETER, battery

1шт.

5

SWITCH, shut-off (refer to "key switch")

1шт.

6

INDICATOR, heat (refer to "heat indicator")

1шт.

7

INDICATOR, glow plug (refer to "glow plug indicator")

1шт.

8

SWITCH, glow plug (refer to "glow plug switch")

1шт.
