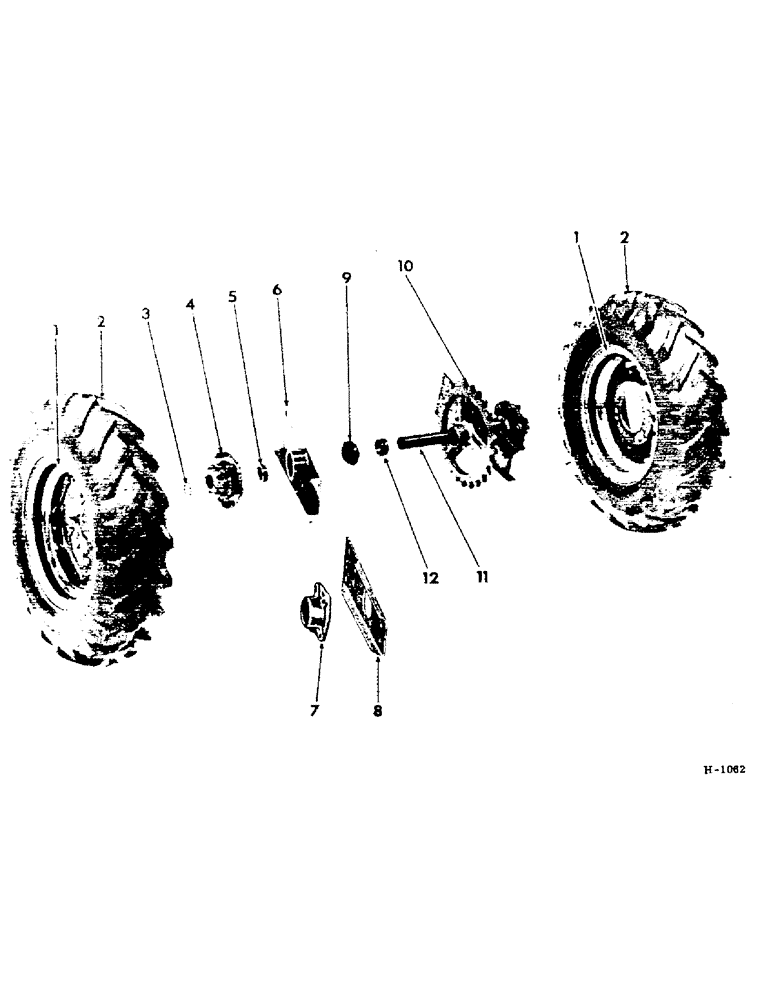

Запчасти Case IH 201 (E-014) - CHASSIS, DUAL AND SINGLE MAIN WHEEL (44) - WHEELS

1

614424R91

WHEEL ASSY.

DISK & RIM, 15 x 6 LB main (1 per wheel)

1шт.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

wheel (6 per wheel)

1шт.

U18588

NUT

wheel (6 per wheel)

1шт.

2

TIRE & TUBE, 7.60 x 15" pneumatic (prior to serial no. H-5074)

2шт.

2

TIRE & TUBE, 6.70 x 15" pneumatic (serial no. H-5074 & up)

4шт.

3

698553R1

SNAP RING,#175, Ext

Ring, Snap, , hub (1 per hub) #175, Ext

1шт.

4

591817R1

HUB

main wheel drive (1 per wheel)

1шт.

Q36

KEY,3/8" Sq x 3 1/2"

3/8 sq x 3-1/2" straight (1 per hub)

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4" C-Z type 2 (2 per wheel)

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

5

582816R11

COLLAR

W/SCREW, axle brg locking

4шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

4шт.

6

591809R11

SUPPORT, main wheel LH shown (prior to serial no. H-1079)

2шт.

6

591810R11

SUPPORT, main wheel RH (prior to serial no. H-1079)

2шт.

180144

RETAINER

BOLT W/NUT, 7/16 x 7/8" C-Z type 2

32шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

32шт.

7

594395R1

HOUSING, support (serial no. H-1079 & up)

4шт.

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

BOLT W/NUT, 7/16 x 7/8" C-Z type 2

16шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT W/NUT, 7/16 x 1-1/2" C-Z type 2

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

32шт.

8

594393R1

SUPPORT, main wheel LH shown (serial no. H-1079 & up)

2шт.

8

594394R1

SUPPORT, main wheel RH (serial no. H-1079 & up)

2шт.

9

591812R91

BALL BEARING

main wheel axle (prior to serial no. H-1079)

4шт.

9

594396R91

BALL BEARING,1.7507" ID x 3.3465" OD x 1.6875"

main wheel axle (serial no. H-1079 & up)

4шт.

10

591915R1

SPROCKET, 25T driven (prior to serial no. H-1079)

2шт.

657205R1

KEY, 3/8 x 3-1/4" straight 3/8" Sq x 3 1/4", Par

2шт.

19525R1

PIN,3/8" x 2 3/4", Coiled

2шт.

10

594397R1

SPROCKET ASSY.

SPROCKET, 25T driven (Serial no. H-1079 & up)

2шт.

Q3953

KEY,Gib, 3/8" Sq x 3"

3/8 x 3" tapered gib

2шт.

11

591816R2

AXLE, main wheel

2шт.

12

591815R1

BUSHING, spacer (1 per wheel)

1шт.
