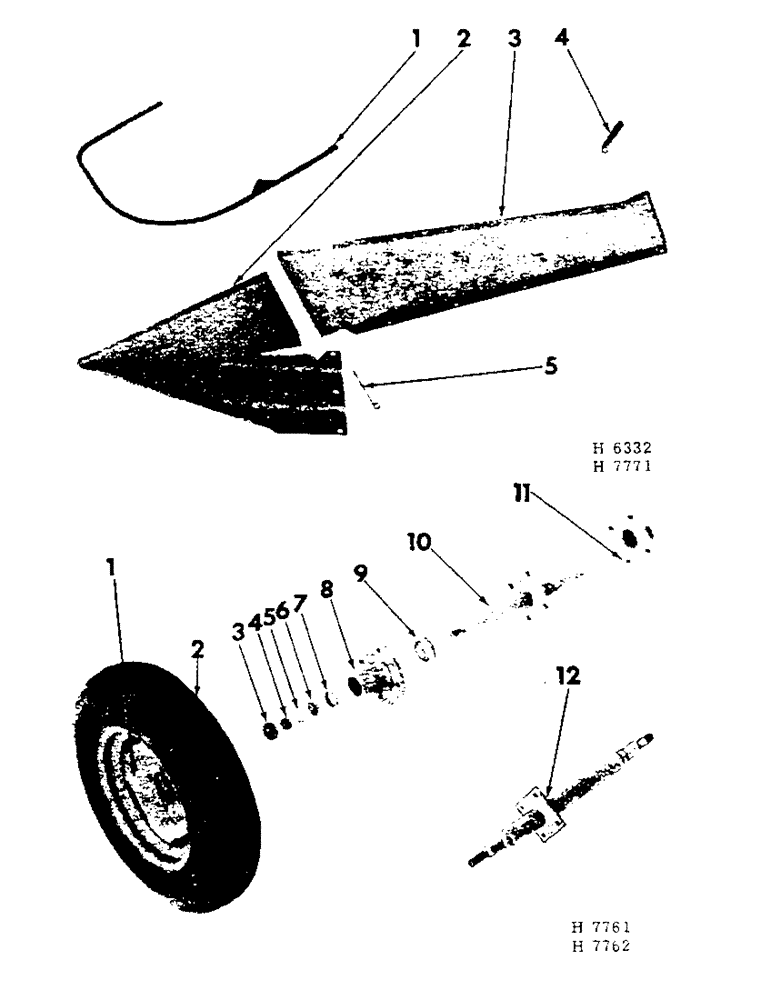

Запчасти Case IH 201 (D-008[A]) - SINGLE AND DUAL MAIN WHEEL (44) - WHEELS

1

592196R91

ROD, divider fender LH

1шт.

1

592197R91

ROD, divider fender LH

1шт.

BOLT W/NUT, 3/8 x 1" crg

2шт.

WASH, 13/32 x 3/4 x 16 ga

2шт.

LK-WASH, 3/8"

2шт.

2

607638R22

DIVIDER, platform LH

1шт.

2

607639R12

DIVIDER, platform RH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT W/NUT, 3/8 x 1" type 2 crg (3-LH; 2-RH)

1шт.

LK-WASH, 3/8" (3-LH;2-RH)

1шт.

3

607642R2

SIDE, platform LH

1шт.

3

607643R2

SIDE, platform RH

1шт.

BOLT W/NUT, 1/4 x 1/2" mach (1-RH; 2-LH)

1шт.

BOLT W/NUT, 1/4 x 1/2" crg

4шт.

BOLT W/NUT, 1/4 x 5/8" crg (5-LH)

1шт.

LK-WASH, 1/4" (3-RH; 9-LH)

1шт.

4

608728R1

SUPPORT, side rear top LH

1шт.

BOLT W/NUT, 5/16 x 5/8" mach

1шт.

BOLT W/NUT, 5/16 x 3/4" mach

1шт.

LK-WASH, 5/16"

2шт.

5

607644R1

BRACE, side sheet LH

1шт.

5

607645R1

BRACE, side sheet RH

1шт.

BOLT W/NUT, 1/4 x 1/2" mach (2-RH)

1шт.

BOLT W/NUT, 5/16 x 5/8" mach

2шт.

BOLT W/NUT, 5/16 x 3/4" mach (RH)

1шт.

BOLT W/NUT, 3/8 x 1" mach (LH)

1шт.

LK-WASH, 1/4"

2шт.

LK-WASH, 5/16"

3шт.

LK-WASH, 3/8"

1шт.
