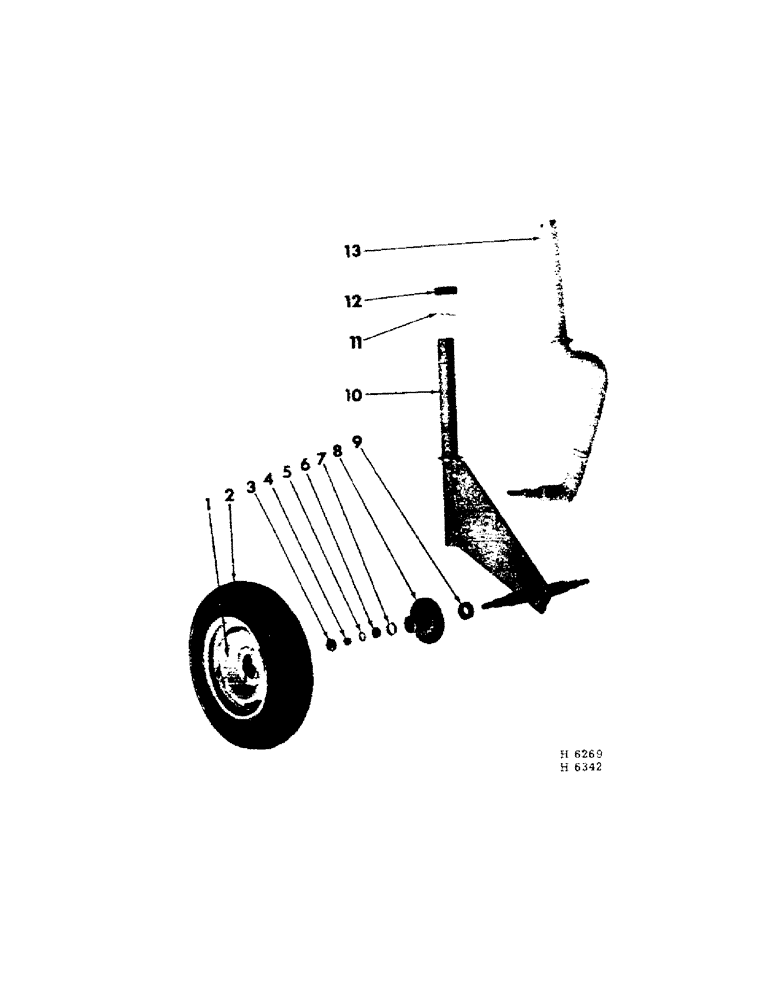

Запчасти Case IH 201 (A-060[A]) - CASTER WHEEL (44) - WHEELS

1

455169R92

WHEEL

DISK & RIM, 4.50 x 15" pneumatic

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

4шт.

2

TIRE & TUBE, 5.90 x 15" pneumatic

1шт.

3

602959R1

PLUG

CAP, wheel hub

1шт.

4

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4"-NF slt axle

1шт.

5

103346

WASHER

13/16 x 1-1/2 x .134 ga

1шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, axle outer brg

1шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

7

651814R1

BEARING CUP

CUP, axle outer brg

1шт.

8

619353R1

HUB

caster wheel

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

4шт.

9

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

axle inner

1шт.

10

612332R93

AXLE, caster dual wheel

1шт.

11

Q3861

WASHER, 2-1/32 x 2-3/4 x 11 ga axle

1шт.

12

619930R1

BUSHING

caster wheel pivot

1шт.

.

19525R1

PIN,3/8" x 2 3/4", Coiled

1шт.

13

613412R91

AXLE, caster wheel single bent

1шт.

.

C-PIN, 5/32 x 1-1/2"

1шт.
