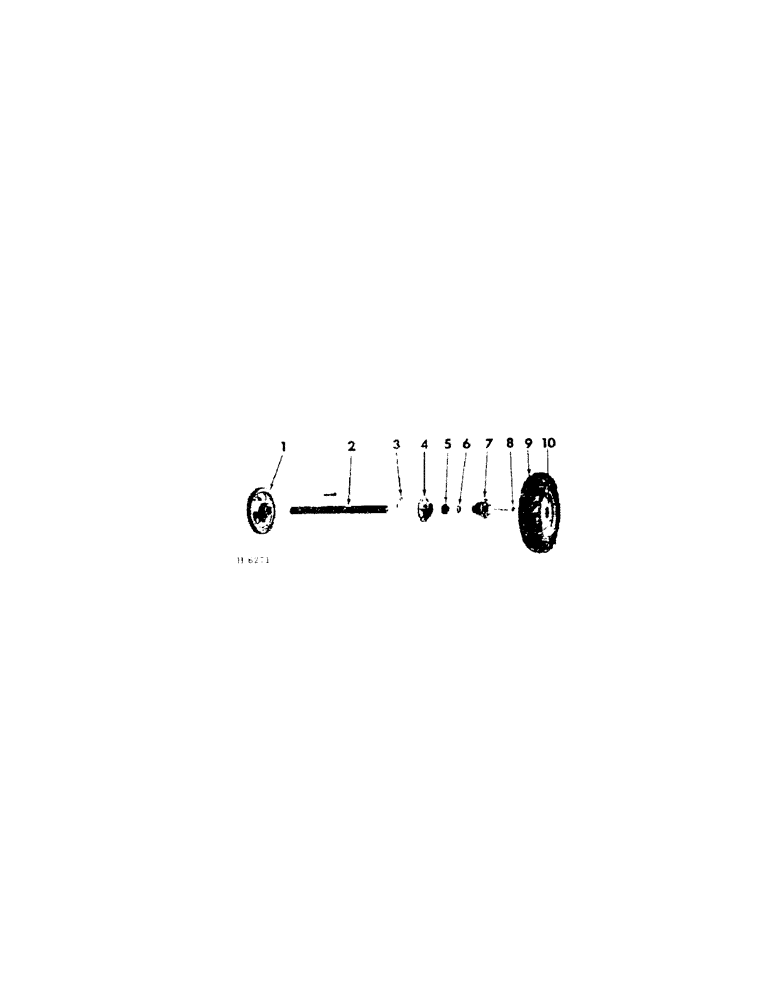

Запчасти Case IH 201 (A-059[A]) - MAIN DRIVE WHEEL (44) - WHEELS

1

613228R1

SPROCKET, driven

2шт.

Q3875

KEY, 1/2 x 1/2 x 4" gib-hd

2шт.

BOLT W/NUT, 3/8 x 3-1/2" mach

2шт.

LK-WASH, 3/8"

2шт.

2

611731R1

SHAFT

wheel axle

2шт.

3

611969R1

GASKET

wheel brg housing

4шт.

4

611697R1

HOUSING, wheel brg

1шт.

BOLT, 1/2 x 1-3/5" type 2

14шт.

BOLT W/NUT, 1/2 x 1-1/2" type 2

2шт.

LK-NUT, 1/8" cd-pltd

2шт.

5

608181R81

BEARING, wheel axle shaft

4шт.

6

618032R11

COLLAR

brg locking (includes 102592, screw)

4шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" cup-pt set

4шт.

7

611715R2

HUB, wheel drive

2шт.

BOLT, 5/8 x 1-3/4" type 2

4шт.

LK-WASH, 5/8"

4шт.

611918R1

KEY, 1/2 x 1/2 x 7-1/2" 1/2" Sq x 7 1/2", Par

2шт.

Q84

KEY, 1/2 x 1/2 x 5-1/2" (dual wheel only) 1/2" Sq x 5 1/2", Par

2шт.

8

278400C1

RING, axle remaining

2шт.

9

TIRE & TUBE, 7.50 x 16"

2шт.

9

TIRE & TUBE, 9.50 x 16"

2шт.

10

495926R91

DISK & RIM, 5.50 x 16"

2шт.

10

936537R91

RIM

DISK & RIM, 9 x 16"

2шт.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2-NF x 1-4/8" wheel

12шт.

U18588

NUT

1/2"-NF wheel

12шт.
