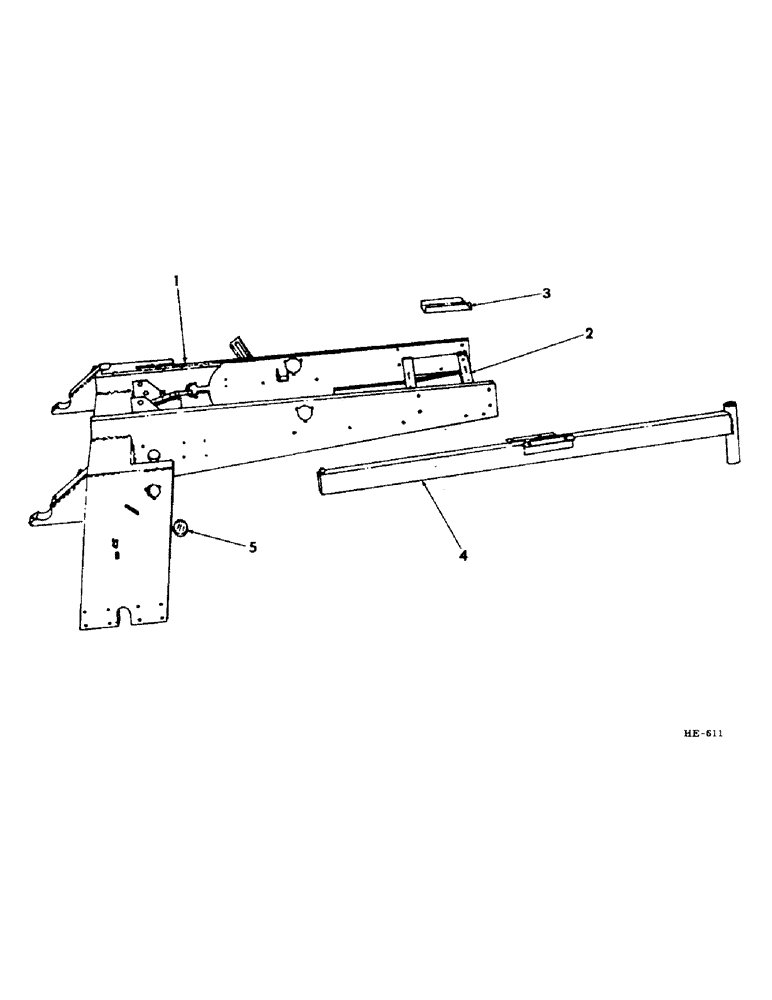

Запчасти Case IH 201 (E-013) - CHASSIS, CHASSIS AND CASTER WHEEL BEAM (39) - FRAMES AND BALLASTING

1

FRAME, chassis main (prior to serial no H-5074 - order 1-597675R1 frame w/engine support, 1-597691R1 battery tray, 1-920645R1 cover, 2-597692R1 bolts & 2-594705R2 hand hole cover

1шт.

1

597675R1

FRAME W/ENGINE SUPPORT, chassis main (serial no H-5074 & up)

1шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

BOLT W/NUT, 7/16 x 3/4" C-Z type 2

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

591796R91

ENGINE SUPPORT, frame (prior to serial no H-1079)

1шт.

2

593709R91

ENGINE SUPPORT, frame (serial no, Serial Range: H-1079-H-5073)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" C-Z type 2

2шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

BOLT W/NUT, 7/16 x 3/4" C-Z type 2

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

w/Nut, 1/2 x 1" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

592013R1

SHIELD, engine (Wisconsin VG4D engine)

1шт.

19287R1

BOLT W/NUT, 3/8 x 3/4" C-Z type 2

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

591805R91

BEAM, caster wheel (prior to serial no H-1079)

1шт.

4

593712R91

BEAM, caster wheel (serial no H-1079 & up)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

425262R1

WASHER

21/32 x 1-1/16 x 1/8"

1шт.

20522R1

BOLT

5/8 x 2-1/4" C-Z type 4

1шт.

22834R1

BOLT W/NUT, 3/4 x 7-1/2" C-Z dld

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

225861

NUT,5/8"-18, G8

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

5

594705R2

COVER, hand hole

2шт.
