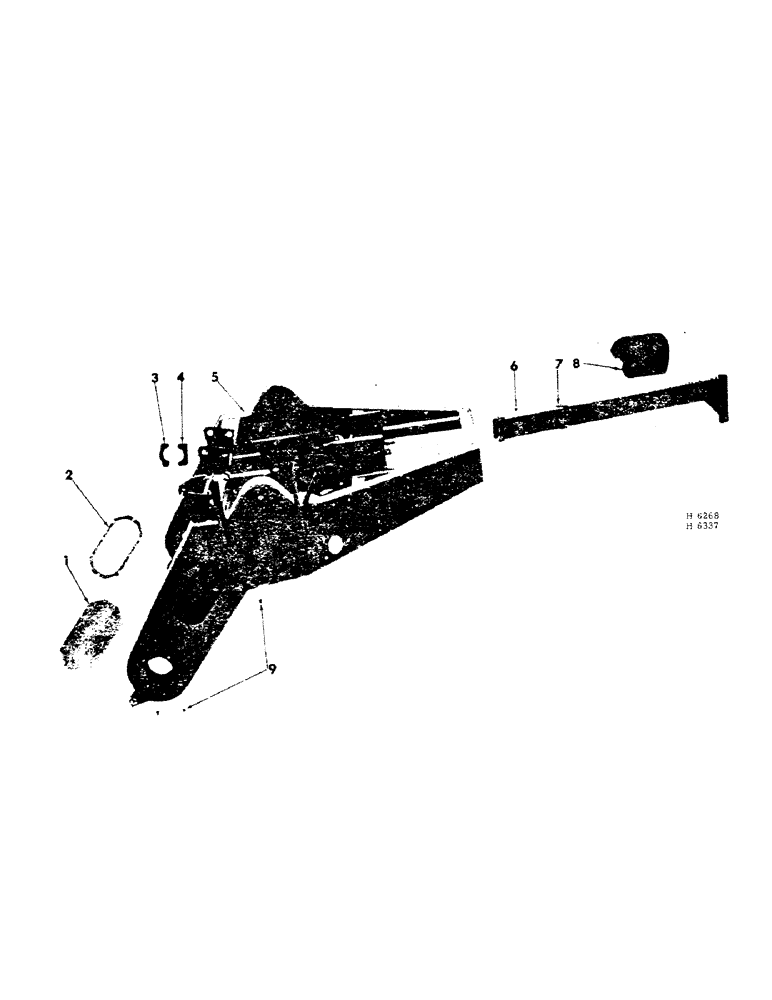

Запчасти Case IH 201 (A-059) - CHASSIS FRAME (39) - FRAMES AND BALLASTING

1

611872R1

COVER, final drive maintenance

2шт.

BOLT, 5/16 x 5/8" mach

16шт.

LK-WASH, 5/16"

16шт.

2

611982R1

GASKET, maintenance cover

2шт.

3

611703R1

BEARING, platform hanger top

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

BOLT, 1/2 x 2-1/2" type 2

8шт.

LK-WASH, 1/2"

8шт.

4

611704R1

BEARING, platform hanger bottom

2шт.

BOLT, 1/2 x 1-1/2" type 2

8шт.

LK-WASH, 1/2"

8шт.

5

611990R94

CHASSIS, main frame

1шт.

6

612001R92

BEAM, caster wheel

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

19537R1

BOLT, 3/4 x 7-1/2" dld mach

1шт.

19917R1

BOLT, 3/4 x 8" dld mach

1шт.

SLT-NUT, 3/4"

2шт.

LK-WASH, 3/4"

2шт.

C-PIN, 1/8 x 1-1/2"

2шт.

7

614135R1

PAD, pivot bold (H1221 & up)

1шт.

8

612351R1

WEIGHT, caster wheel beam

2шт.

BOLT W/NUT, 1/2 x 3-1/2" mach

2шт.

LK-WASH, 1/2"

2шт.

9

103879

PLUG, 3/8" sq-hd pipe

5шт.
