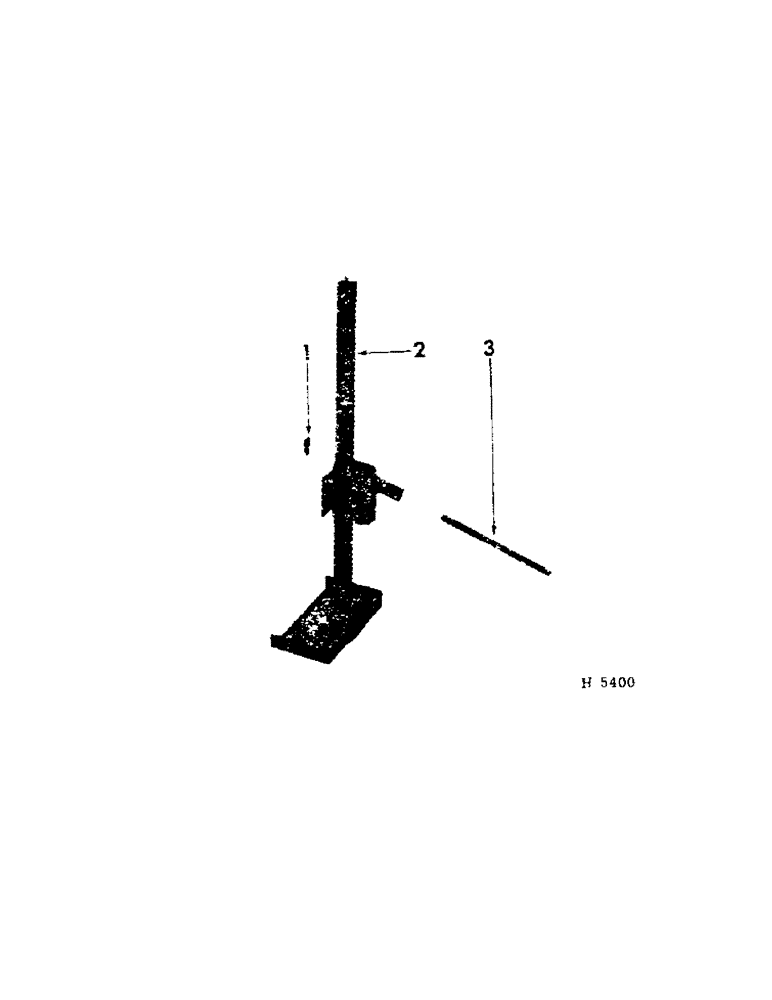

Запчасти Case IH 201 (D-009[B]) - TRACTOR HITCH STAND AND PRODUCT GRAPHICS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

M42726

CLIP, hitch stand handle

2шт.

Not part of hitch stand

1шт.

BOLT W/NUT, 1/2 x 1" cd-pltd crg

2шт.

Not part of hitch stand

1шт.

LK-WASH, 1/2" cd-pltd

2шт.

Not part of hitch stand

1шт.

2

583389R91

STAND, tractor hitch

1шт.

591107R1

COTTER PIN

C-PIN, quick-attachable

1шт.

Not part of hitch stand

1шт.

19393R1

BOLT W/NUT, 7/16 x 1-1/4" cd-pltd mach

4шт.

Not part of hitch stand

1шт.

LK-WASH, 7/16" cd-pltd

4шт.

Not part of hitch stand

1шт.

3

454733R1

HANDLE, hitch stand

1шт.

Not part of hitch stand

1шт.

1001422R2

DECAL

PRODUCT GRAPHIC, "I.H."

3шт.

2750989

PRODUCT GRAPHIC, "McCormick - International"

1шт.

2750990R1

PRODUCT GRAPHIC, "McCormick - International"

1шт.

PRODUCT GRAPHIC, "200 Windrower" name (order 1-607854R92, pkg) (NSS)

1шт.

PRODUCT GRAPHIC, "be careful" (order 1-607854R92, pkg) (NSS)

1шт.

PRODUCT GRAPHIC, "PTO operating speeds" (order 1-607854R92, pkg) (NSS)

1шт.

PRODUCT GRAPHIC, lubrication arrows (order 1-607854R92, pkg) (NSS)

2шт.

607854R92

PACKAGE

product graphic service composed of: (3) product graphic 1001422R2, (1) product graphic 2750939R1, (1) product graphic 2750990R1, (1) product graphic (NSS), (1) product graphic (NSS), (1) product graphic (NSS), (2) product graphic (NSS)

1шт.
