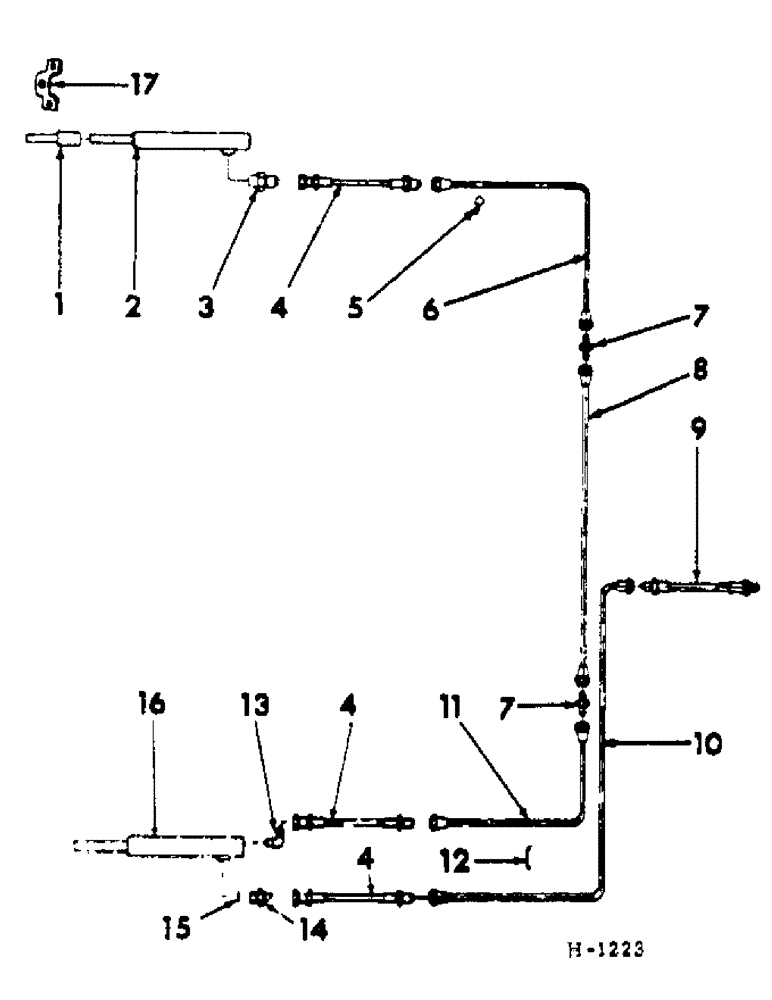

Запчасти Case IH 201 (E-056) - HYDRAULICS, REEL LIFT HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

591740R91

EXTENSION, reel lift slave cyl

1шт.

PG144

PIN, 1/2 x 1-11/16" std-hd dld

1шт.

6749

PIN

1/2 x 3-5/16" std hd dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

CYLINDER, reel lift slave (for component parts refer to "Reel Lift Slave Cylinder")

1шт.

D3376

LARGE PIN

PIN, 1/2 x 2-3/4" std-hd dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, slave cylinder hose

1шт.

4

611937R91

HOSE ASSY.

HOSE, hyd cyl

3шт.

5

140569

DECAL

CLIP, hyd inlet pipe

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

W/NUT, 5/16 x 3/4" C-Z type 2

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

592171R11

PIPE, slave cyl inlet

1шт.

7

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

extension pipe

2шт.

8

593260R11

PIPE, 10-1/2 ft master to slave extension

1шт.

8

593261R11

PIPE, 13-1/2 ft master to slave extension

1шт.

8

592170R11

PIPE, 16-1/2 ft master to slave extension 0.375" OD, 137" Length

1шт.

8

593262R11

PIPE, 19-1/2 ft master to slave extension

1шт.

9

610980R91

HOSE, master, Serial Range: cyl-valve

1шт.

10

593257R11

PIPE, 19-1/2 ft master cyl inlet

1шт.

10

593258R11

PIPE, 13-1/2 ft master cyl inlet

1шт.

10

592168R11

PIPE, 16-1/2 ft master cyl inlet

1шт.

10

593259R11

PIPE, 19-1/2 ft master cyl inlet

1шт.

11

592169R11

PIPE, master cyl outlet

1шт.

12

614323R2

CLAMP

cylinder & outlet hose

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

W/NUT, 1/4 x 1-1/4" C-Z type 2

1шт.

21801R1

WASHER

C-Z WASHER, 9/32 x 3/4 x 16 ga

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

585694R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90deg. master cyl outlet hose

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, master cyl inlet hose

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, inlet pipe connector

1шт.

16

CYLINDER, reel lift master (for component parts refer to "Reel Lift Master Cylinder")

1шт.

Q1194

AXLE PIN,1/2" x 3"

PIN, 1/2 x 3" std-hd dld

1шт.

R303M

PIN, 1/2 x 3-9/16" std-hd dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

17

591743R1

CLAMP, right hyd cyl extension upr

1шт.

21860R1

BOLT W/NUT, 3/8 x 7/8" C-Z crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
