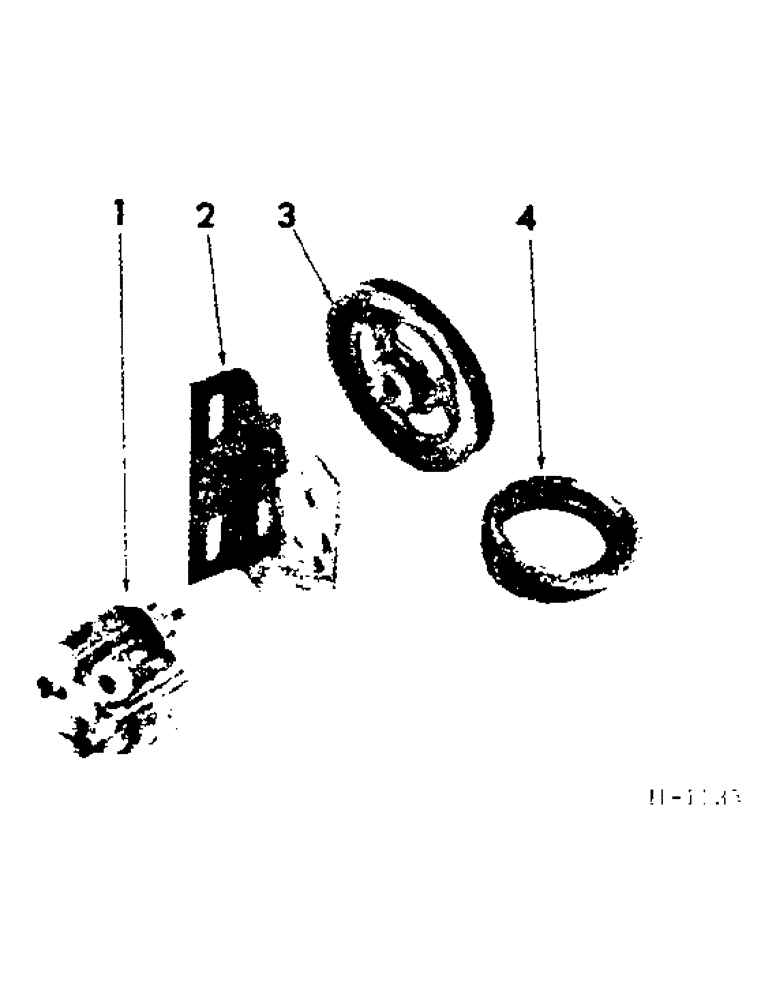

Запчасти Case IH 201 (E-055[1]) - HYDRAULIC FLUID (35) - HYDRAULIC SYSTEMS

1

PUMP, hyd (refer to "Hydraulic Pump")

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

W/NUT, 3/8 x 1" C-Z type 2, for use w/591979R91 pump

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

W/NUT, 3/8 x 1-1/4" C-Z type 2, (for use w/591080R91 pump)

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (2 or 4) 3/8"

1шт.

2

591082R1

SUPPORT, hyd pump mounting

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" C-Z crg

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

591981R1

PULLEY

hyd pump drive

1шт.

125233

NUT, 3/8"-NF SLT

RING

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

4

610462R1

V-BELT,36.30" L

Hyd pump drive (Wisconsin VH41 engine) 36.30" L

1шт.

4

592030R1

V-BELT,0.49" W

Hyd pump drive (Wisconsin VH41 engine) 0.49" W

1шт.

372703R4

FLUID

HY-TRAN FLUID, 1 qt U.S. measure

1шт.

372704R4

TRANSMISSION OIL

HY-TRAN FLUID, 1 gal U.S. measure

1шт.

372705R4

FLUID

HY-TRAN FLUID, 5 gal U.S. measure

1шт.

997495R4

FLUID

HY-TRAN FLUID, 1 qt imperial measure

1шт.

997497R4

FLUID

HY-TRAN FLUID, 5 gal imperial measure

1шт.
