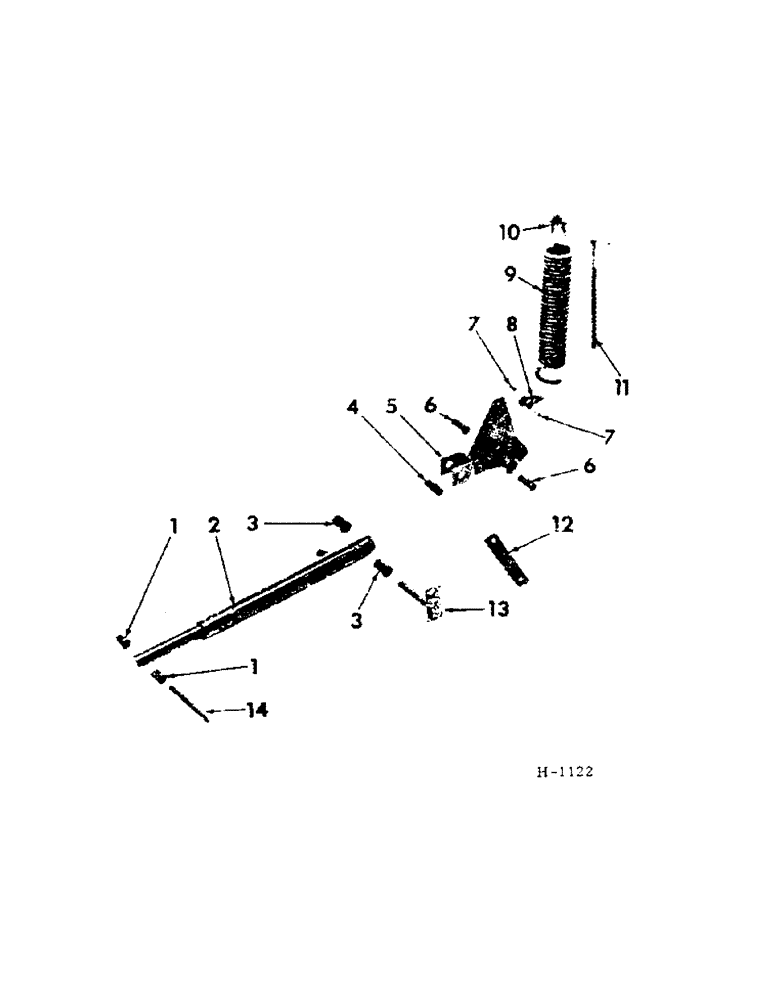

Запчасти Case IH 201 (E-053) - HYDRAULICS, PLATFORM LIFT CYLINDER UNIT (35) - HYDRAULIC SYSTEMS

1

355681R1

SPACER, hyd cyl front pin

4шт.

2

CYLINDER, platform lift hyd (for components refer to "Platform Lift Hydraulic Cylinder")

1шт.

3

458696R1

SPACER, rear pivot pin

4шт.

4

592186R1

SPACER, lift cyl rear anchor

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

W/NUT, 3/4 x 3-1/2" C-Z type 2

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

5

592174R92

BRACKET, float spring (LH shown) (includes 592180R1 bushings), Serial Range: (prior-1966)

1шт.

5

594398R91

BRACKET, float spring LH (includes 592180R1 bushings) (1966 & since)

1шт.

5

592175R92

BRACKET, float spring RH (includes 592180R1 bushings), Serial Range: (prior-1966)

1шт.

5

594399R91

BRACKET, float spring RH (includes 592180R1 bushings) (1966 & since)

1шт.

NLS

NO LONGER SERVICED

5/16"-NF lub

1шт.

6

592180R1

BUSHING, float spg bracket

4шт.

7

592181R1

SPACER, float spg clevis

4шт.

8

455369R2

CLEVIS

platform float spg

2шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

W/NUT, 3/8 x 2-1/4" C-Z type 2

2шт.

510856R1

WASHER, 13/32 x 3/4 x 16 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

592182R1

SPRING, platform float, Serial Range: (prior-1966)

2шт.

9

594390R1

SPRING, platform float (1966 & since)

2шт.

10

592183R1

PLUG, float spg, Serial Range: (prior-1966)

2шт.

10

594391R1

PLUG, float spg (1966 & since)

2шт.

11

592184R2

BOLT, float spg

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2" hex jam

2шт.

12

592185R1

BAR, spg bumper, Serial Range: (prior-1966)

2шт.

12

594402R1

BAR, spg bumper (1966 & since)

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

W/NUT, 7/16 x 1" C-Z type 2

4шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

13

591991R12

PIVOT, hyd cyl rear

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" C-Z type 2

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

591990R1

PIN, hyd cyl front

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.
