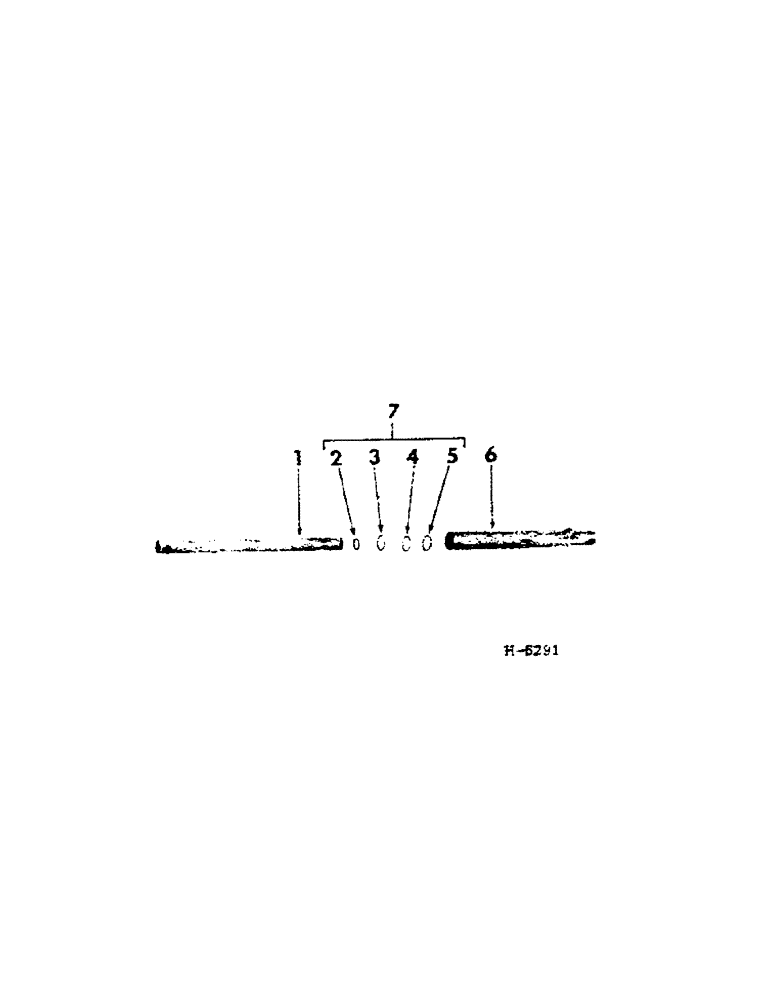

Запчасти Case IH 201 (E-053[1]) - PLATFORM LIFT HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

591989R91

CYLINDER, platform lift hyd (includes parts listed below)

2шт.

1

592251R1

ROD, hyd cyl piston

2шт.

2

RING, rod lock, (order 1-477655R91, kit) (NSS)

1шт.

3

SEAL, piston rod (order 1-477855R91, kit) (NSS)

1шт.

4

WASHER, back-up (order 1-477855R91, kit) (NSS)

1шт.

5

"O" RING, piston rod (order 1-477855R91, kit) (NSS)

1шт.

6

592250R91

BARREL, hyd cyl

2шт.

7

477855R91

SEAL KIT

hyd cyl seal repair

1шт.
