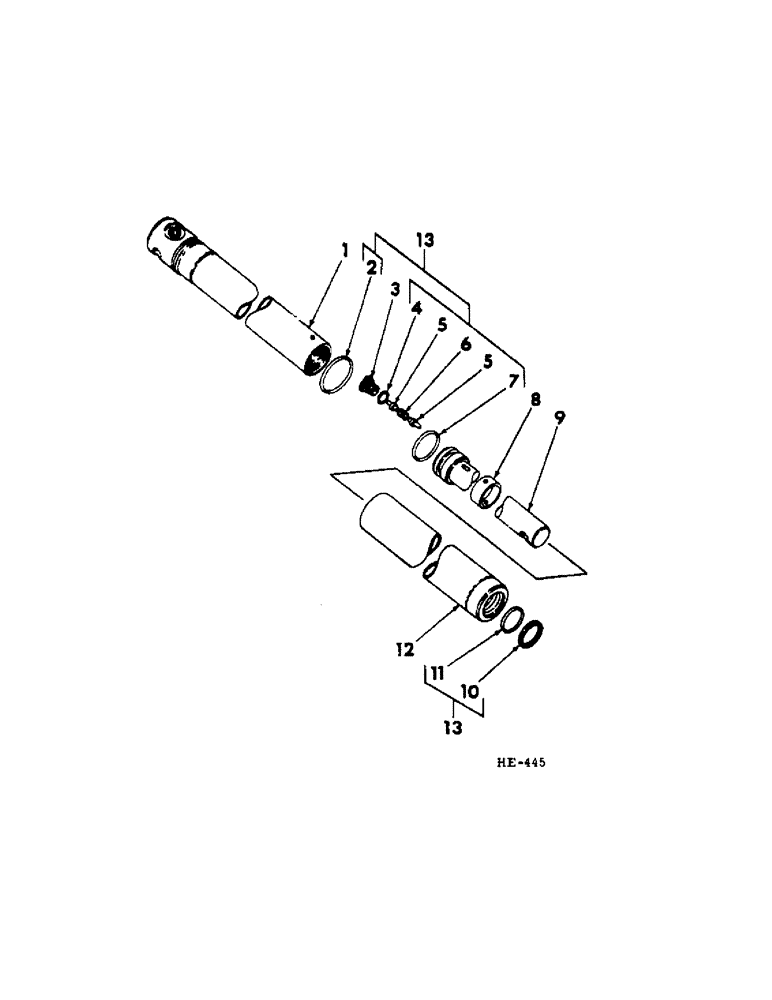

Запчасти Case IH 201 (E-052) - HYDRAULICS, REEL LIFT MASTER HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

632457R91

CYLINDER

reel lift hyd (composed of parts listed below, unless otherwise noted)

1шт.

Q1194

AXLE PIN,1/2" x 3"

PIN, 1/2 x 3" std-hd dld

1шт.

Not part of cylinder

1шт.

R303M

PIN, 1/2 x 3-9/16" std-hd dld

1шт.

Not part of cylinder

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

Not part of cylinder

1шт.

1

632463R91

HEAD, hyd cyl

1шт.

2

298384R1

OIL SEAL

"O" RING, cyl head

1шт.

3

632458R1

PLUG, piston rod seat

1шт.

5

632460R91

POPPET, piston rod

2шт.

6

632459R1

VALVE SPRING

SPRING, piston rod

1шт.

7

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

"O" RING, piston rod

1шт.

8

632461R1

COLLAR, piston rod

1шт.

17045R1

LOCK PIN,5/32" x 1 3/8", Slotted

PIN, 5/32" x 1 3/8", Slotted

1шт.

9

632464R91

ROD, piston

1шт.

10

356005R1

O-RING,1.109" ID x 0.139" Width

"O" RING, hyd cyl head

1шт.

11

564808R91

WIPER

OIL SEAL, piston rod

1шт.

12

632462R91

BEARING, piston barrel

1шт.

13

159836C91

KIT

hyd cyl seal repair

1шт.

610899R92

CYLINDER BLOCK

CYLINDER, reel lift hyd slave (composed of parts listed below unless otherwise noted)

1шт.

D3376

LARGE PIN

PIN, 1/2 x 2-3/4" std-hd dld

1шт.

Not part of cylinder

1шт.

PO15292

PIN, 1/2 x 3-15/16" std-hd dld

1шт.

Not part of cylinder

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

Not part of cylinder

1шт.

4

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Seat plug

1шт.
