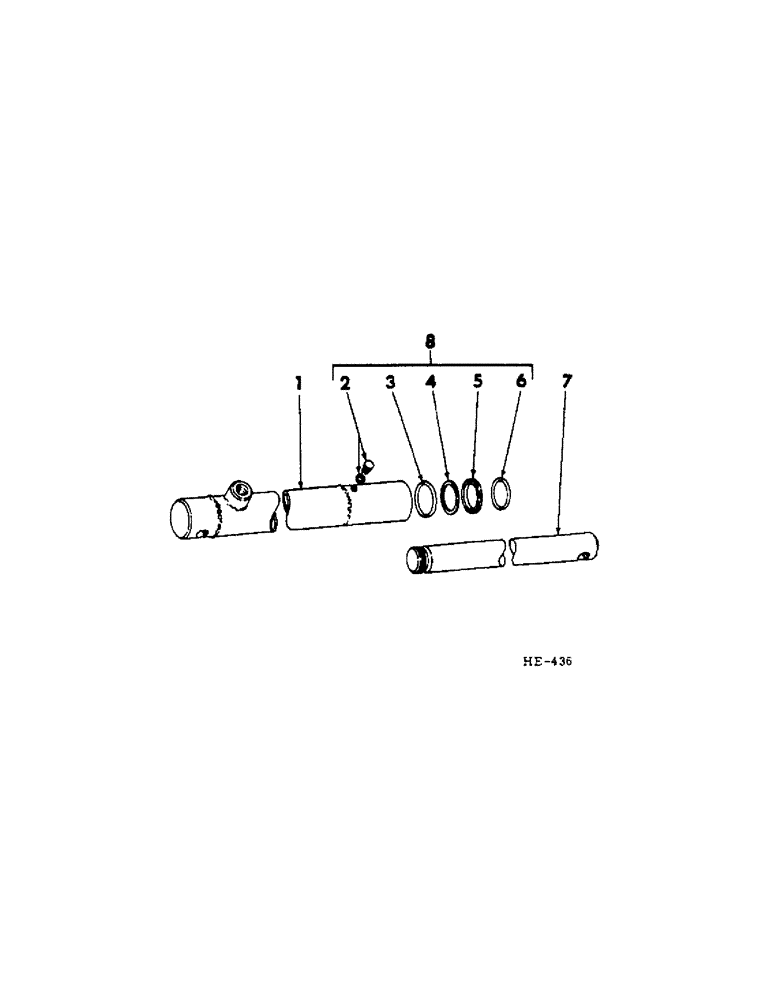

Запчасти Case IH 201 (E-052[1]) - REEL LIFT SLAVE HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

609984R91

BARREL, hyd cyl

1шт.

2

SCREW & WASHER, bleeder (order 1-609986R91 kit) (NSS)

1шт.

3

"O" RING, piston rod (order 1-609986R91 kit) (NSS)

1шт.

4

WASHER, back-up (order 1-609986R91 kit) (NSS)

1шт.

5

OIL SEAL, piston rod (order 1-609986R91 kit) (NSS)

1шт.

6

RING, piston rod snap (order 1-6099986R91 kit) (NSS)

1шт.

7

609985R1

ROD

piston

1шт.

8

609986R91

SEAL KIT

cylinder seal repair

1шт.
