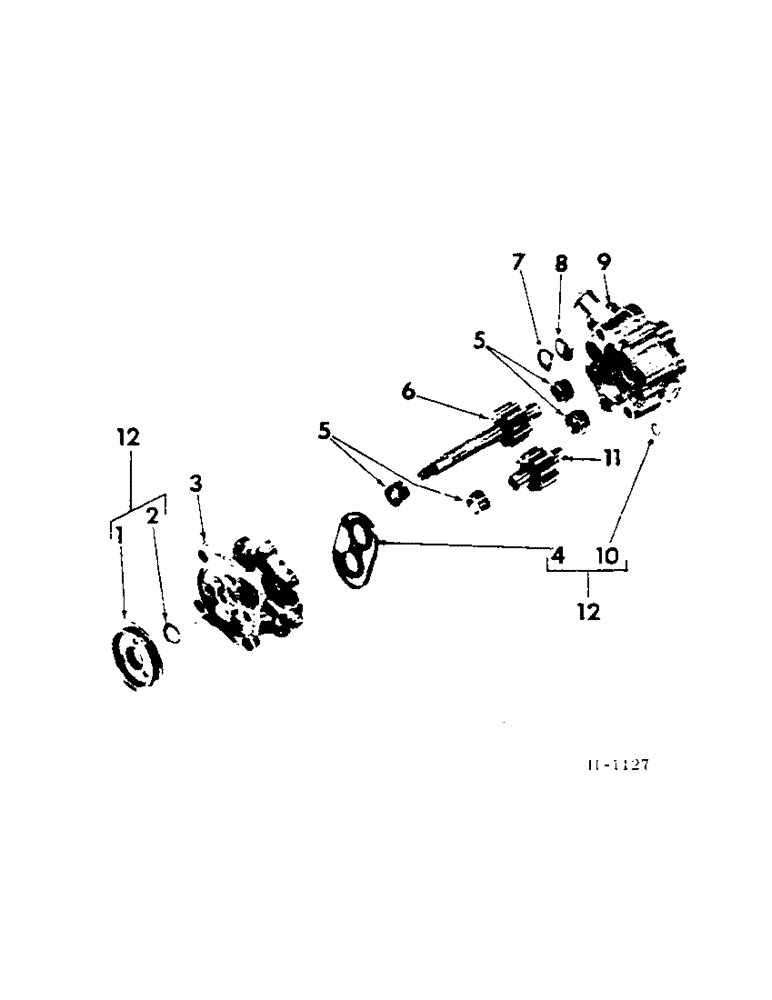

Запчасти Case IH 201 (E-051) - HYDRAULICS, HYDRAULIC PUMP, WEBSTER (35) - HYDRAULIC SYSTEMS

591979R91

PUMP, hyd (opt w/591980R91 pump) (includes parts listed, unless otherwise noted)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

W/NUT, 3/8 x 1" C-Z type 2

4шт.

Not part of pump

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Not part of pump

1шт.

1

PLATE, seal (order 1-592430R91 kit) (NSS)

1шт.

167024

SCREW, no. 8-NF x 1/4" pan-hd cross-recess type "D" C-Z self-tapping

3шт.

2

"O" RING, (order 1-592430R91 kit) (NSS)

1шт.

3

592421R91

BODY, pump, (includes 592422R91 brgs)

1шт.

592428R1

PIN, body dowel

2шт.

4

SEAL, (order 1-592430R91 kit) (NSS)

1шт.

5

592422R91

BEARING, body & cover needle

4шт.

6

592424R91

GEAR, pump drive

1шт.

592426R1

KEY, 1/8 x 1/8 x 3/8"

1шт.

7

592429R1

INSERT, bridging

1шт.

8

592427R1

BLOCK, pump anti-extrusion

1шт.

9

592423R91

COVER, pump (includes 592422R91 brgs)

1шт.

138225

BEARING

SCREW, 5/16 x 1-3/4" soc-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

GASKET, (order 1-592430R91 kit)

1шт.

Not part of pump

1шт.

11

592425R91

GEAR, pump idler

1шт.

12

592420R91

KIT, pump seal repair composed of (1) gasket (NSS), (1) plate (NSS), (1) "o"ring (NSS), (1) seal (NSS)

1шт.

591980R91

PUMP

hyd (opt w/591979R91 pump) (includes parts listed unless otherwise noted)

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

W/NUT, 3/8 x 1-1/8" C-Z type 2

2шт.

Not part of pump

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of pump

1шт.
