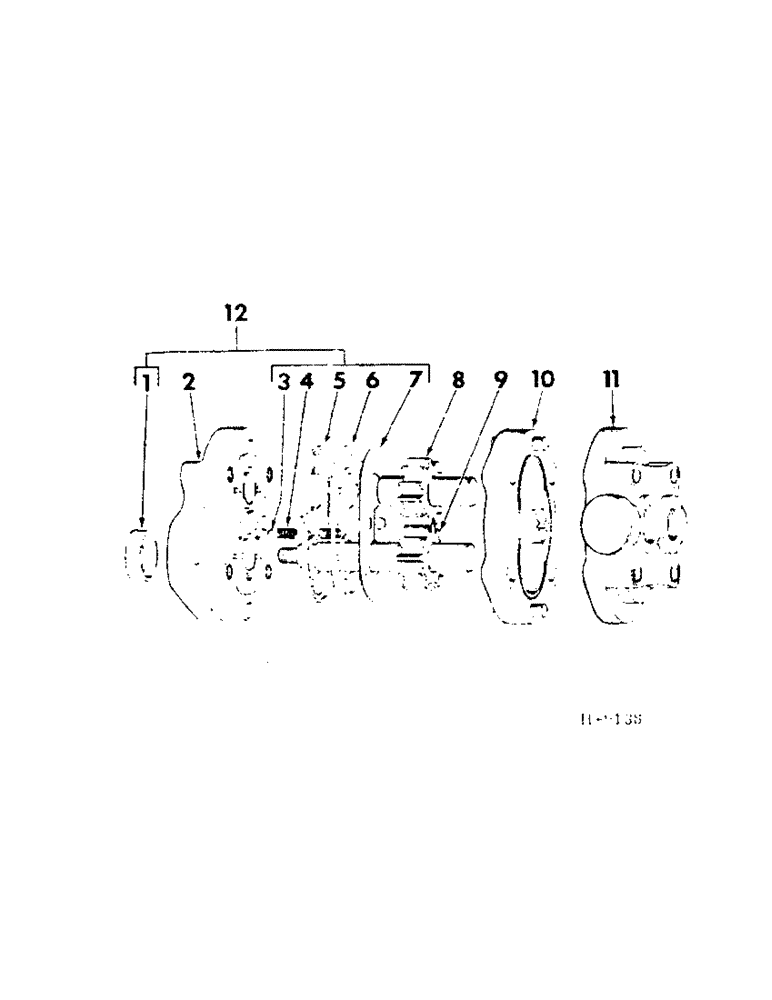

Запчасти Case IH 201 (E-051[1]) - HYDRAULIC PUMP, CESSNA (35) - HYDRAULIC SYSTEMS

1

596548R91

SEAL

pump shaft

1шт.

2

614746R91

PLATE, pump front

1шт.

3

16007R1

BALL

pump spg

2шт.

4

351523R1

SPRING, hyd pump

2шт.

5

SEAL, (order 1-614750R91 pkg) (NSS)

1шт.

6

GASKET, (order 1-614750R91 pkg) (NSS)

1шт.

7

DIAPHRAGM (order 1-614750R91 pkg) (NSS)

1шт.

8

592249R91

GEAR, pump idler

1шт.

9

592248R91

GEAR, pump drive

1шт.

607171R1

KEY

pump gear

1шт.

10

617370R91

BODY, pump (includes dowel pins)

1шт.

11

614747R91

PLATE, pump rear

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4" C-Z type 2

4шт.

12

614750R91

KIT

PACKAGE, gasket & seal service

1шт.
