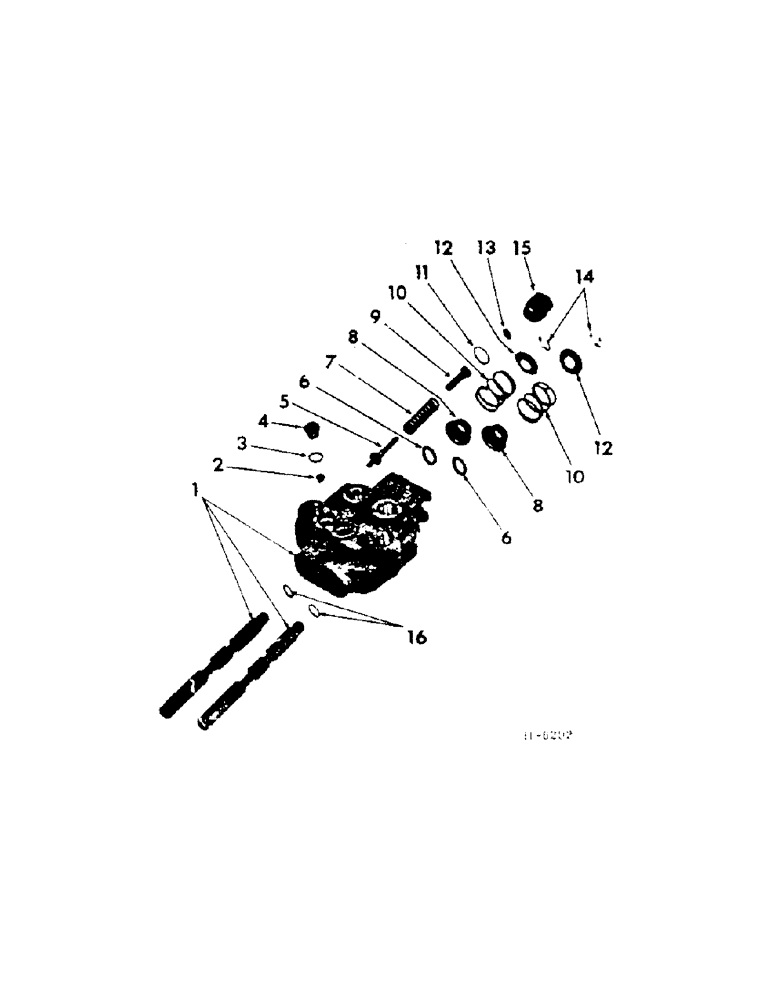

Запчасти Case IH 201 (E-050) - HYDRAULICS, HYDRAULIC VALVE, PRIOR TO SERIAL NUMBER H-5074 (35) - HYDRAULIC SYSTEMS

611966R92

VALVE, hyd control (includes parts listed, unless otherwise noted)

1шт.

180089

SPRING

W/NUT, 5/16 x 2-1/4" C-Z type 2

1шт.

Not part of valve

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not part of valve

1шт.

1

HOUSING & SPOOL, (order 1-611966R92 valve) (NSS)

1шт.

2

613606R1

BALL, lift check

2шт.

3

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

"O" RING, lift check plug

2шт.

4

613604R1

PLUG, lift check

2шт.

5

613601R91

PIN, relief valve

1шт.

6

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING, hyd spool

2шт.

7

613597R1

SPRING, relief valve

1шт.

8

613603R1

WASHER, hyd spool deep

2шт.

9

613600R1

GUIDE, relief valve

1шт.

10

613598R1

SPRING

hyd spool

2шт.

11

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING, relief valve cap

2шт.

12

613602R1

WASHER

hyd spool shallow

2шт.

13

613599R1

SHIM, relief valve

1шт.

14

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , hyd spool #50, .392" Dia, E-Type

2шт.

15

613605R1

CAP, relief valve

1шт.

16

592674R1

O-RING,0.612" ID x 0.006" Width

"O" RING, spool washer

2шт.

607431R91

KIT, angle spool valve seal repair (Includes reference nos. 2, 3, 6, 11 & 15

1шт.

596410R91

VALVE, hyd control composed of all parts listed unless otherwise noted

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT W/NUT, 1/4 x 1-3/4" C-Z type 2

2шт.

Not part of valve

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Not part of valve

1шт.
