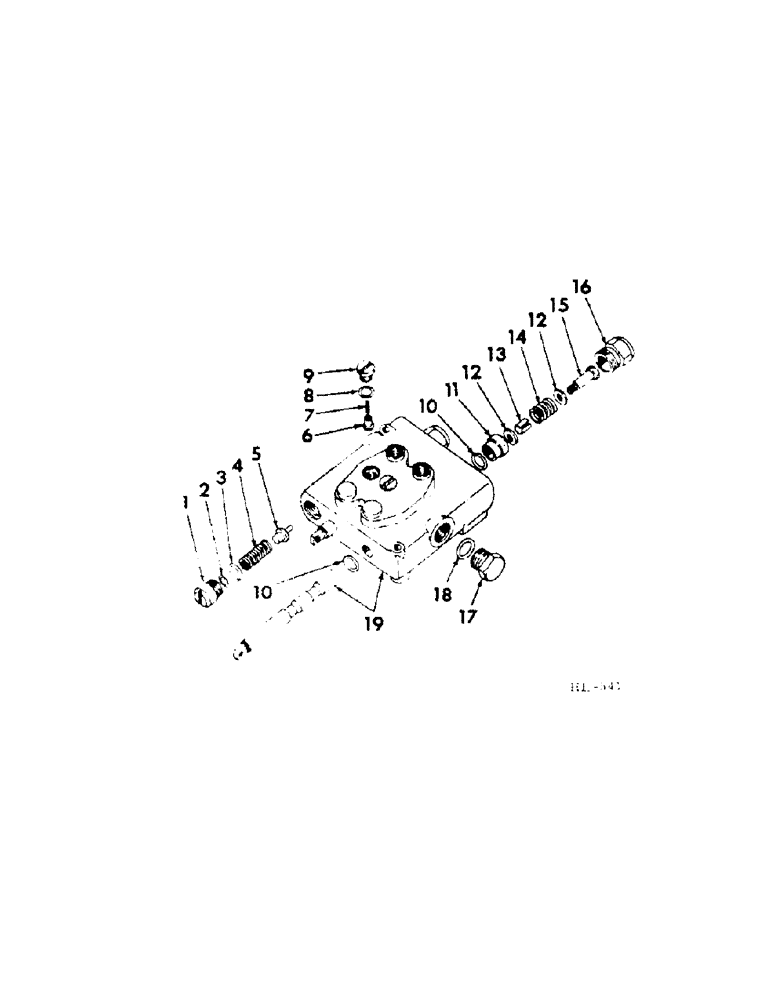

Запчасти Case IH 201 (E-050[1]) - HYDRAULIC VALVE, SERIAL NUMBER H-5074 AND UP (35) - HYDRAULIC SYSTEMS

1

598423R1

PLUG

valve relief

1шт.

2

675504R1

SHIM, relief plug .015

1шт.

2

394655R1

WASHER

SHIM, relief plug .010

1шт.

2

673647R1

WASHER

SHIM, relief plug .035

1шт.

3

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

"O" RING, valve relief plug

1шт.

4

673751R1

SPRING

poppet

1шт.

5

674501R1

VALVE POPPET

POPPET, valve

1шт.

6

673622R1

PLUNGER

lift check

2шт.

7

673625R1

SPRING

lift check

2шт.

8

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING, lift check plug

2шт.

9

673623R1

PLUG, lift check

2шт.

10

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

"O" RING, spool

4шт.

11

674775R1

BUSHING

spool

2шт.

12

674495R1

WASHER, spool spring

4шт.

13

674492R1

SPACER

spool

2шт.

14

674490R1

SPRING

spool center

2шт.

15

674491R1

SCREW

spool

2шт.

16

674493R1

CAP

spool

2шт.

17

598424R1

PLUG, valve body

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING, valve body plug

1шт.

REF#18 REPLACED BY A7982 9/26/96

1шт.

19

HOUSING & SPOOL (order 1-596410R91 valve)

1шт.

598425R91

KIT, dual spool valve seal repair (includes reference no's 3, 8, 10 & 18)

1шт.
