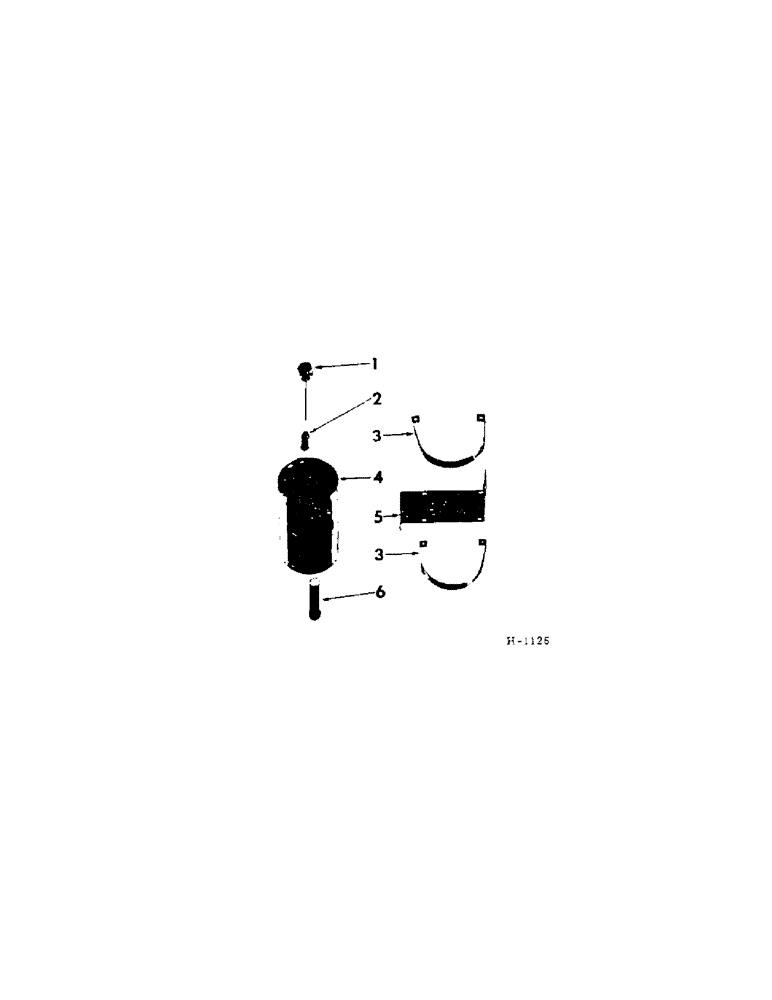

Запчасти Case IH 201 (E-049) - HYDRAULICS, HYDRAULIC RESERVOIR, PRIOR TO SERIAL NUMBER H-5074 (35) - HYDRAULIC SYSTEMS

1

606873R11

STICK, breather cap & dip

1шт.

2

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2" pipe

1шт.

3

610768R2

STRAP, reservoir mounting

2шт.

22475R1

BOLT W/NUT, 3/8 x 5/8" C-Z crg (3-VH4D)

1шт.

22475R1

BOLT W/NUT, 3/8 x 5/8" C-Z crg (4-VG4D)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W/NUT, 3/8 x 3/4" C-Z type 2 (VR4D)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

619000R92

RESERVOIR, hyd oil

1шт.

5

592033R1

BRACKET, reservoir mounting (VH4D shown)

1шт.

5

592034R1

BRACKET, reservoir mounting (VG4D)

1шт.

6

619037R91

STRAINER ASSY.

STRAINER, oil reservoir

1шт.
