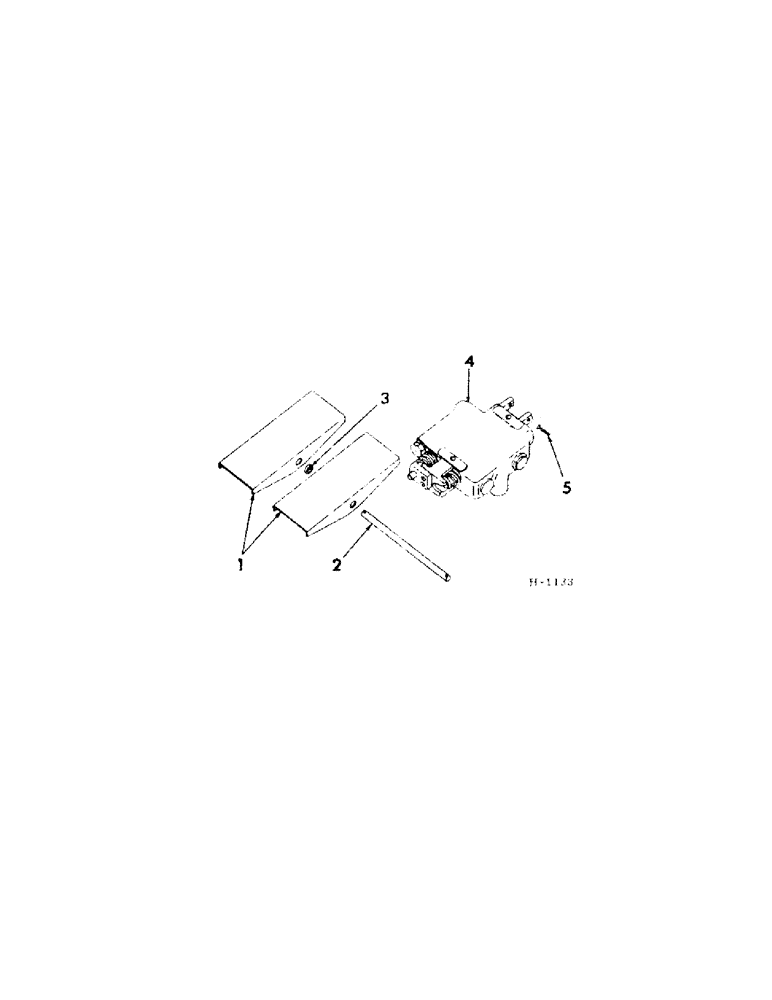

Запчасти Case IH 201 (E-049[2]) - HYDRAULIC CONTROL VALVE PEDAL (35) - HYDRAULIC SYSTEMS

1

597926R1

PEDAL, hyd valve control (serial no. H5074 & up)

2шт.

13869A

BOLT, operator's pedal stop

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

2

591976R1

PIN, pdeal pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

611463R1

SPACER, control pedal

1шт.

4

VALVE, hyd control (prior to serial no. H-5074) (refer to "Hydraulic Valve")

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

W/NUT, 5/16 x 2-1/4" C-Z type 2

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

VALVE, hyd control (serial no. H-5074 & up) (Refer to "Hydraulic Valve")

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT W/NUT, 1/4 x 1-3/4" C-Z type 2

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

611987R1

PIN, hyd valve spool (prior to serial no. H-5074)

2шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga

4шт.

103361

PIN, SPLIT (COTTER)

C-PIN, 1/16 x 1/2"

2шт.

5

598083R1

CHAIN (AG)

LINK, hyd valve spool (serial no. H-5074 & up)

2шт.
