(E-049[1]) - HYDRAULIC RESERVOIR, SERIAL NUMBER H-5074 AND UP

Запчасти Case IH 201 (E-049[1]) - HYDRAULIC RESERVOIR, SERIAL NUMBER H-5074 AND UP (35) - HYDRAULIC SYSTEMS

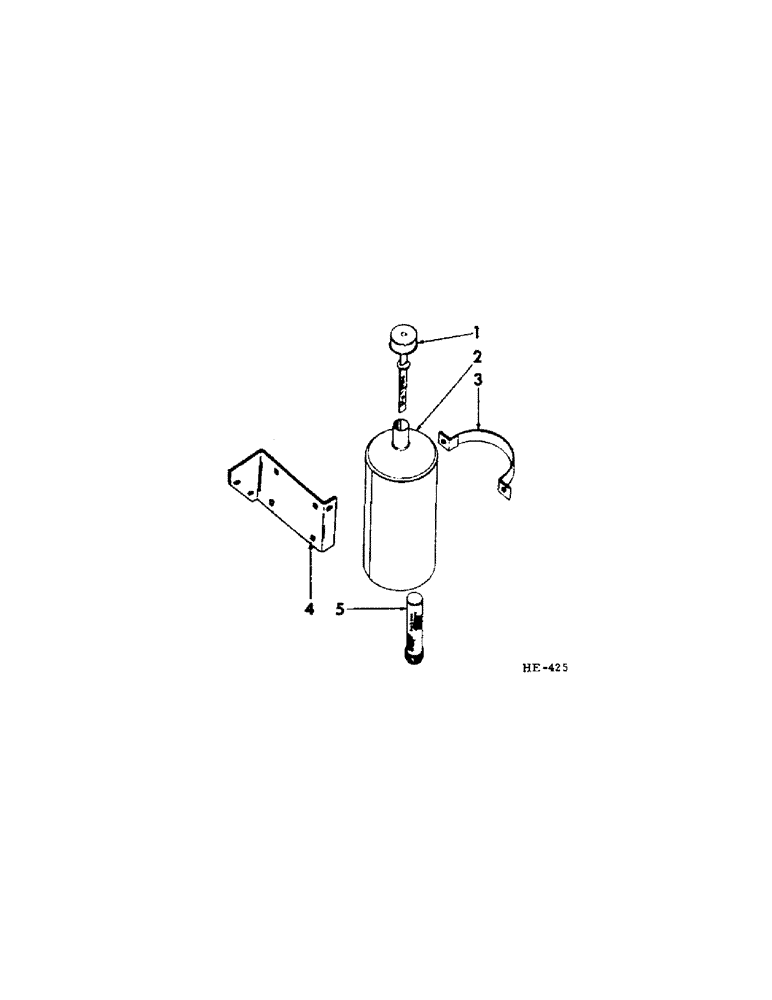

Схема запчастей Case IH 201 - (E-049[1]) - HYDRAULIC RESERVOIR, SERIAL NUMBER H-5074 AND UP (35) - HYDRAULIC SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

596357R1

CAP

STICK, breather cup & dip

1шт.

2

597436R91

RESERVOIR, hyd oil (includes 1-596357R1 stick)

1шт.

3

610768R2

STRAP, reservoir mounting

2шт.

22475R1

BOLT W/NUT, 3/8 x 5/8" C-Z crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

592033R1

BRACKET, reservoir mounting (VH4D shown)

1шт.

4

592034R1

BRACKET, reservoir mounting (VG4D)

1шт.

5

619037R91

STRAINER ASSY.

STRAINER, oil reservoir

1шт.

Выбрано товаров: 8
