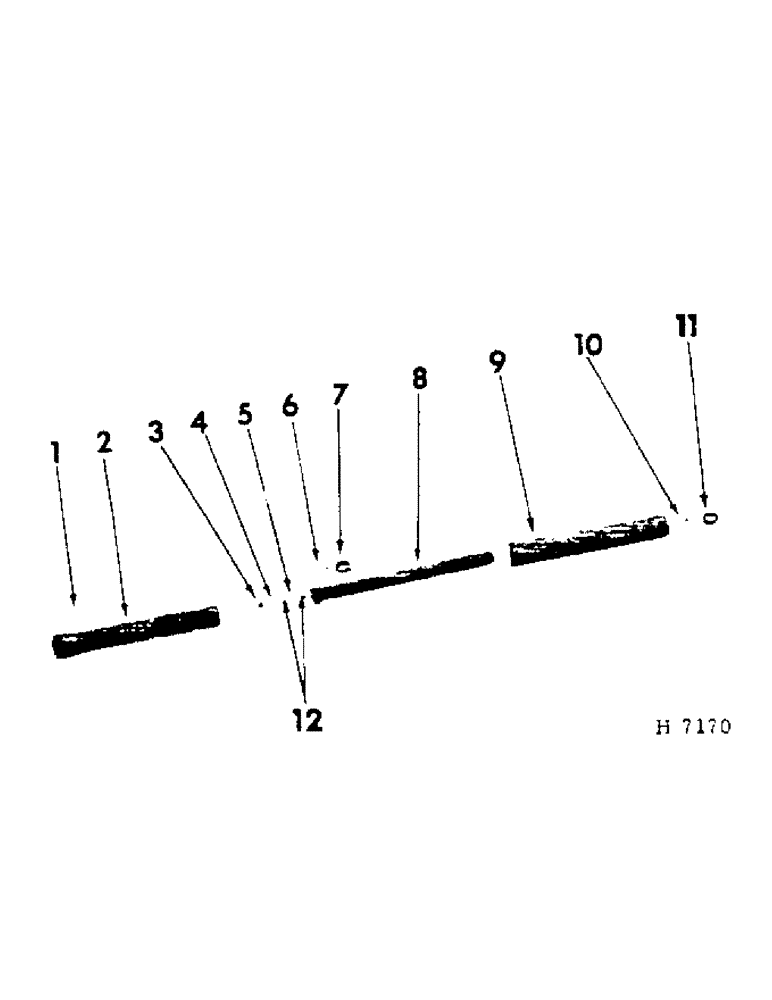

Запчасти Case IH 201 (D-044) - REEL LIFT MASTER HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

632457R91

CYLINDER

reel lift LH master hyd (composed of all parts listed below unless otherwise noted)

1шт.

PIN, 1/2 x 3" std-hd dld

1шт.

For machines w/hyd reel lift & hyd platform lift, controlled from the tractor

1шт.

PIN, 1/2 x 3-9/16" std-hd dld

1шт.

For machines w/hyd reel lift & hyd platform lift, controlled from the tractor

1шт.

C-PIN, 3/16 x 1"

2шт.

For machines w/hyd reel lift & hyd platform lift, controlled from the tractor

1шт.

1

298384R1

OIL SEAL

O-RING, hyd cyl head

1шт.

2

632463R91

HEAD, hyd cyl

1шт.

3

632458R1

PLUG, piston rod seat

1шт.

5

632459R1

VALVE SPRING

SPRING, piston rod

1шт.

6

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

piston rod

1шт.

7

632461R1

COLLAR, piston rod

1шт.

17045R1

LOCK PIN,5/32" x 1 3/8", Slotted

PIN, 5/32" x 1 3/8", Slotted

1шт.

8

632464R91

ROD, piston

1шт.

9

632462R91

BEARING, piston barrel

1шт.

10

356005R1

O-RING,1.109" ID x 0.139" Width

hyd cyl head

1шт.

11

564808R91

WIPER

OIL SEAL, piston rod

1шт.

12

632460R91

POPPET, piston rod

2шт.

4

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Seat plug

1шт.
