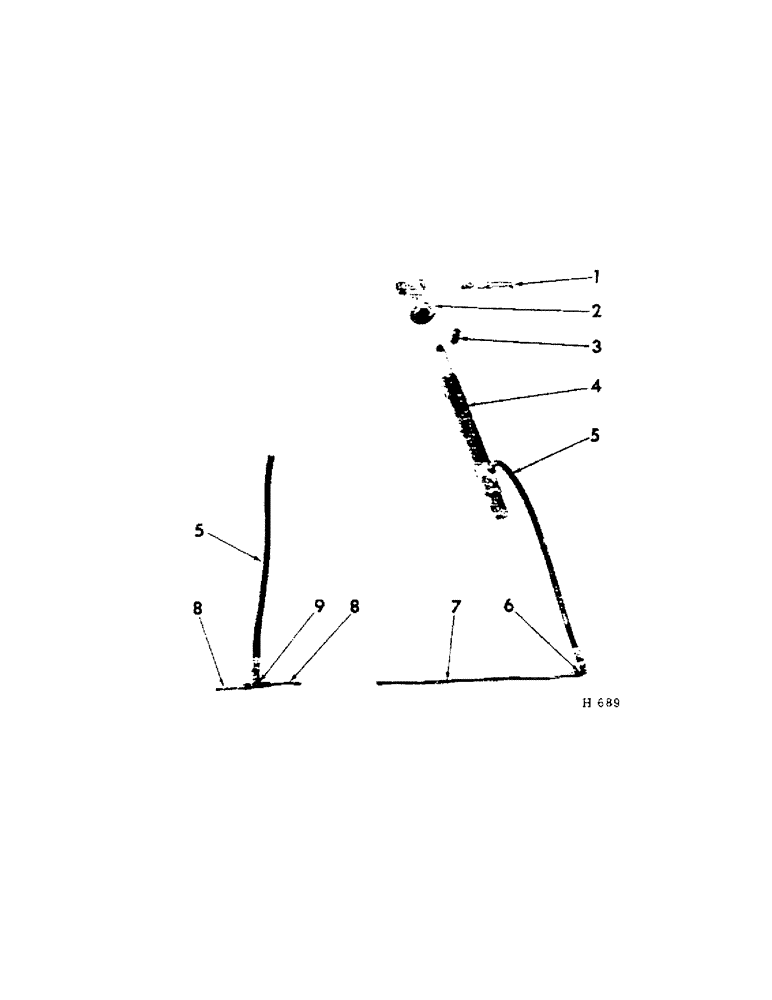

Запчасти Case IH 201 (D-043) - HYDRAULIC LINES, PLATFORM LIFT (35) - HYDRAULIC SYSTEMS

1

607736R1

PIN, hyd cyl front retaining

1шт.

C-PIN, 1/4 x 1-1/2"

2шт.

2

611702R1

CAP, cyl rod end

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3

611726R1

PIN, hyd cyl rod

1шт.

4

CYLINDER, platform lift hyd (for component parts of this assembly refer to "platform lift hydraulic cylinder")

1шт.

584492R1

PIN

1 x 3" std-hd dld

1шт.

C-PIN, 1/4 x 1-1/2"

1шт.

5

607737R91

HOSE, platform lift cyl

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, cylinder hose

1шт.

6

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

90deg. cyl pipe

1шт.

7

607738R11

PIPE, platform lift cyl (12 ft)

1шт.

8

607739R11

PIPE, platform lift cyl (16 ft)

2шт.

9

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

lift cyl pipe (16 ft only)

1шт.
