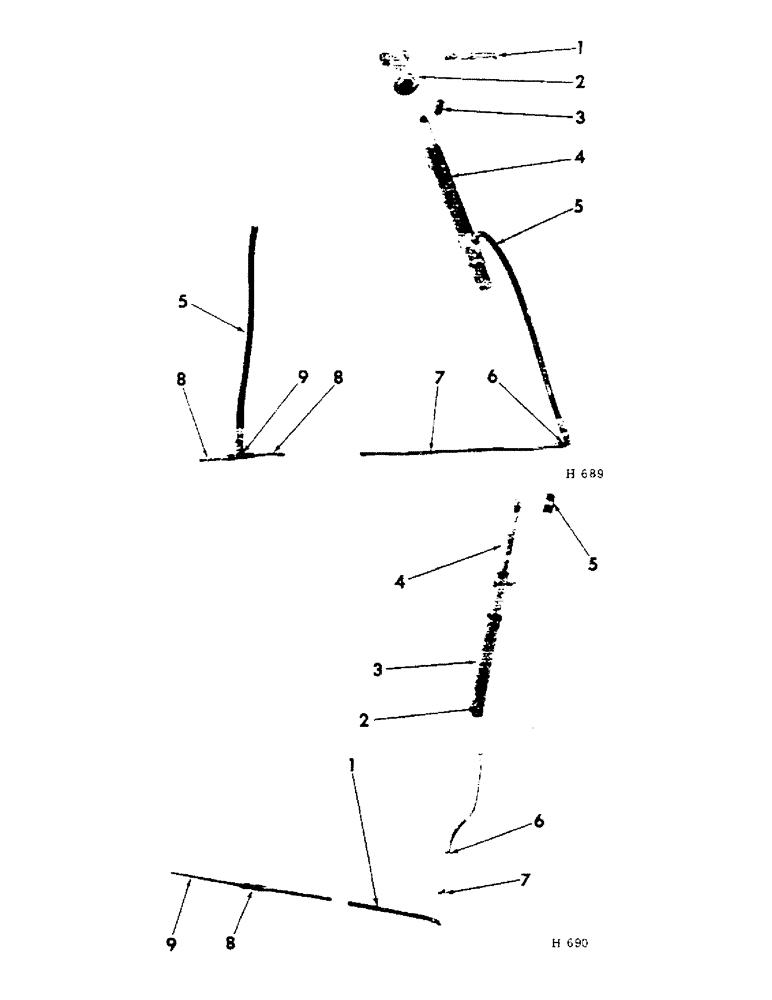

Запчасти Case IH 201 (D-043[B]) - HYDRAULIC LINES, REEL LIFT SLAVE CYLINDER (35) - HYDRAULIC SYSTEMS

1

591744R11

PIPE, slave cylinder inlet

1шт.

2

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 3/8" to 1/4" reducer

1шт.

3

CYLINDER, reel lift slave RH (for component parts refer to "reel lift slave cylinder")

1шт.

PIN, 1/2 x 2-3/4" std-hd dld

1шт.

C-PIN, 3/16 x 1"

1шт.

4

591740R91

EXTENSION, slave cylinder

1шт.

PIN, 1/2 x 1-11/16" std-hd dld

1шт.

C-PIN, 3/16 x 1"

1шт.

5

591743R1

CLAMP, cylinder extension upper

1шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

PIN, 1/2 x 3-5/16" std-hd dld

1шт.

LK-WASH, 3/8" cd-pltd

2шт.

C-PIN, 3/16 x 1"

1шт.

6

53480H

CLIP

inlet pipe lower

1шт.

BOLT W/NUT, 7/16 x 1-1/8" cd-pltd mach

1шт.

LK-WASH, 7/16" cd-pltd

1шт.

7

140580

NO LONGER SERVICED

CLIP, inlet pipe upper (on 3/8" platform bolt)

1шт.

8

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

inlet pipe to extension pipe

1шт.

9

591745R11

PIPE, 12 ft cyl extension

1шт.

9

591746R11

PIPE, 16 ft cyl extension

1шт.
