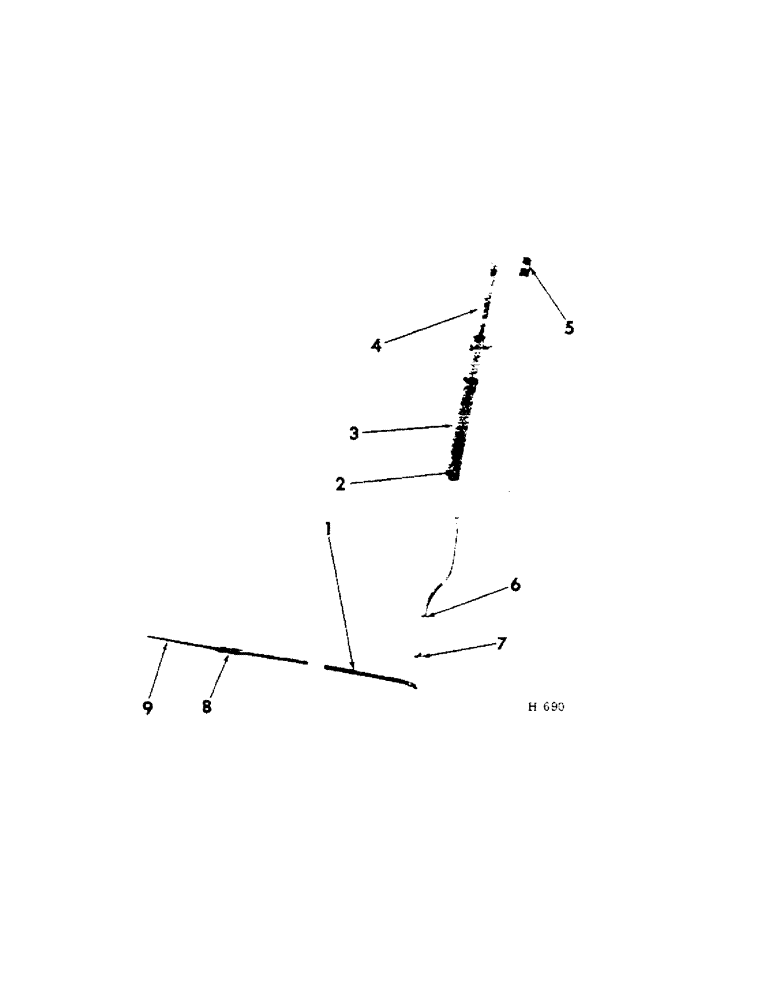

Запчасти Case IH 201 (D-043[A]) - HYDRAULIC LINES, REEL LIFT SLAVE CYLINDER (35) - HYDRAULIC SYSTEMS

1

591744R11

PIPE, slave cylinder inlet

1шт.

2

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 3/8" to 1/4" reducer

1шт.

3

CYLINDER, reel lift slave RH (for component parts refer to "reel lift slave cylinder")

1шт.

PIN, 1/2 x 2-3/4" std-hd dld

1шт.

C-PIN, 3/16 x 1"

1шт.

4

CYLINDER, platform lift hyd (for component parts of this assembly refer to "platform lift hydraulic cylinder")

1шт.

584492R1

PIN

1 x 3" std-hd dld

1шт.

C-PIN, 1/4 x 1-1/2"

1шт.

5

607737R91

HOSE, platform lift cyl

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, cylinder hose

1шт.

6

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

90deg. cyl pipe

1шт.

7

607738R11

PIPE, platform lift cyl (12 ft)

1шт.

8

607739R11

PIPE, platform lift cyl (16 ft)

2шт.

9

9402981

SHAFT

lift cyl pipe (16 ft only)

1шт.
