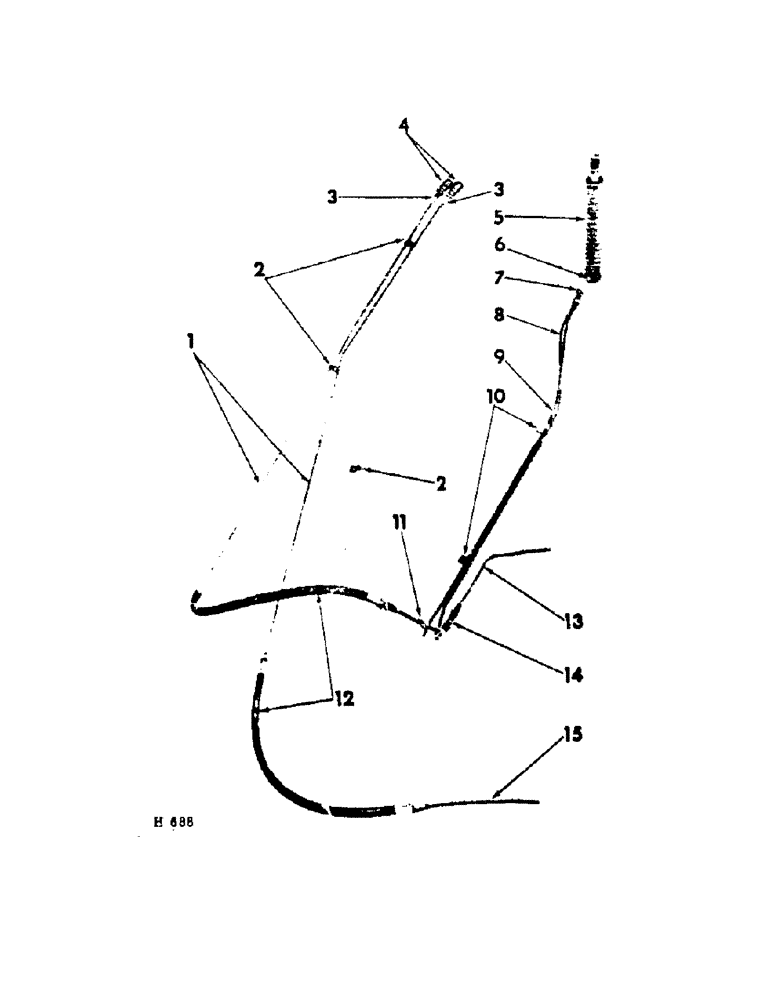

Запчасти Case IH 201 (D-042) - HYDRAULIC LINES, TRACTOR TO MACHINE (35) - HYDRAULIC SYSTEMS

1

607727R11

PIPE, jumper hose to tractor hose

2шт.

2

607562R1

CLAMP, hyd pipe

4шт.

125986

SCREW, no. 10-NF x 1/4" cd-pltd slt-rd-hd tapping

4шт.

3

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR, pipe to tractor hose

2шт.

4

444101

COVER

COUPLING, hyd pipe

2шт.

5

CYLINDER, reel lift master hyd RH (for component parts of this assembly refer to "reel lift hydraulic master cylinder")

1шт.

PIN, 1/2 x 3" std-hd dld (upr)

1шт.

PIN, 1/2 x 3-9/16" std-hd dld (lower)

1шт.

C-PIN, 3/16 x 1"

2шт.

6

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, master cyl inlet pipe

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pipe connector

1шт.

7

585694R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90deg. master cyl outlet pipe

1шт.

8

591747R11

PIPE, master cyl outlet

1шт.

9

591749R11

PIPE, master cyl inlet

1шт.

10

607561R1

CLAMP, master cyl pipes

2шт.

125986

SCREW, no. 10-NF x 1/4" cd-pltd slt-rd-hd tapping

4шт.

11

591750R1

STRIP, clamp support

1шт.

BOLT W/NUT, 1/4 x 5/8" cd-pltd crg

1шт.

LK-WASH, 1/4" cd-pltd

1шт.

12

607726R91

HOSE, hitch pivot jumper

2шт.

13

591745R11

PIPE, 12 ft reel lift extension

1шт.

13

591746R11

PIPE, 16 ft reel lift extension

1шт.

14

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

90deg. slave outlet pipe

1шт.

15

607738R11

PIPE, platform lift cyl

1шт.
