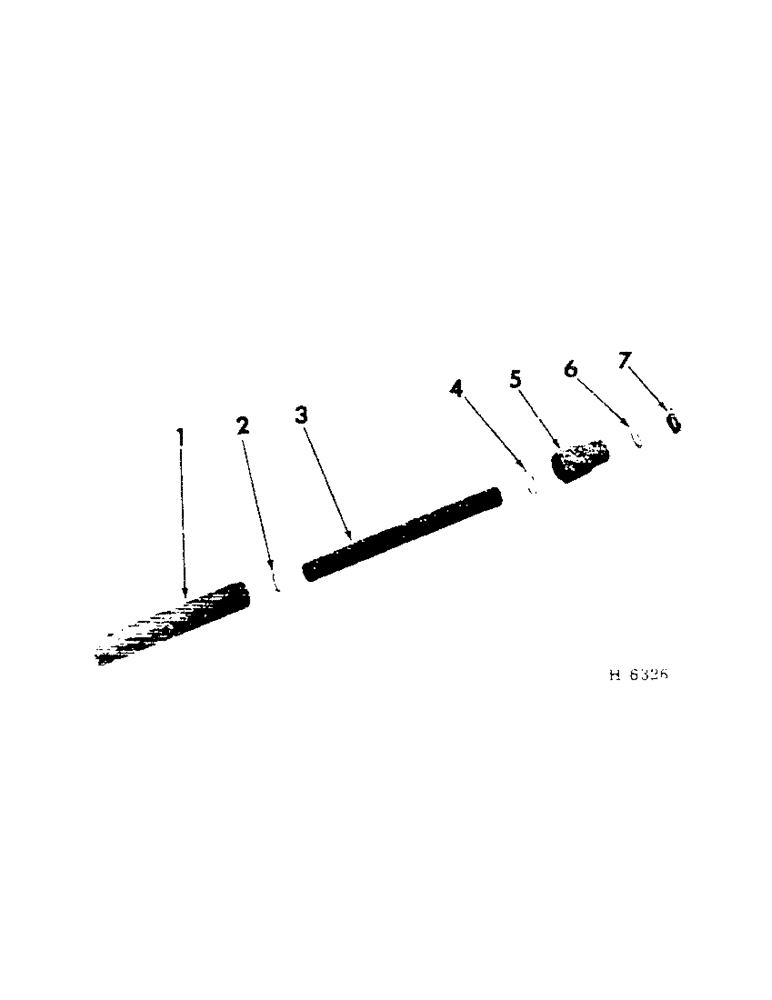

Запчасти Case IH 201 (D-041) - REEL LIFT HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

612682R91

CYLINDER, reel lift hyd (includes parts listed, unless otherwise noted)

1шт.

PIN, 1/2 x 3-9/16" std-hd dld

1шт.

PIN, 9/16 x 3" std-hd dld

1шт.

C-PIN, 3/16 x 1"

1шт.

1

612679R11

BARREL, hyd cyl

1шт.

PIN, 9/16 x 3" std-hd dld

1шт.

C-PIN, 3/16 x 1"

1шт.

2

612680R1

RING, piston rod retaining

1шт.

3

612678R1

ROD, hyd cyl piston

1шт.

PIN, 1/2 x 3-9/16" std-hd dld

1шт.

C-PIN, 3/16 x 1"

1шт.

4

612681R1

RING

O-RING, piston rod brg inner

1шт.

5

612676R1

BEARING, piston rod

1шт.

6

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

piston rod brg outer

1шт.

7

570449R91

SEAL

OIL SEAL, piston rod brg

1шт.
