(D-041[B]) - PLATFORM LIFT HYDRAULIC CYLINDER

Запчасти Case IH 201 (D-041[B]) - PLATFORM LIFT HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

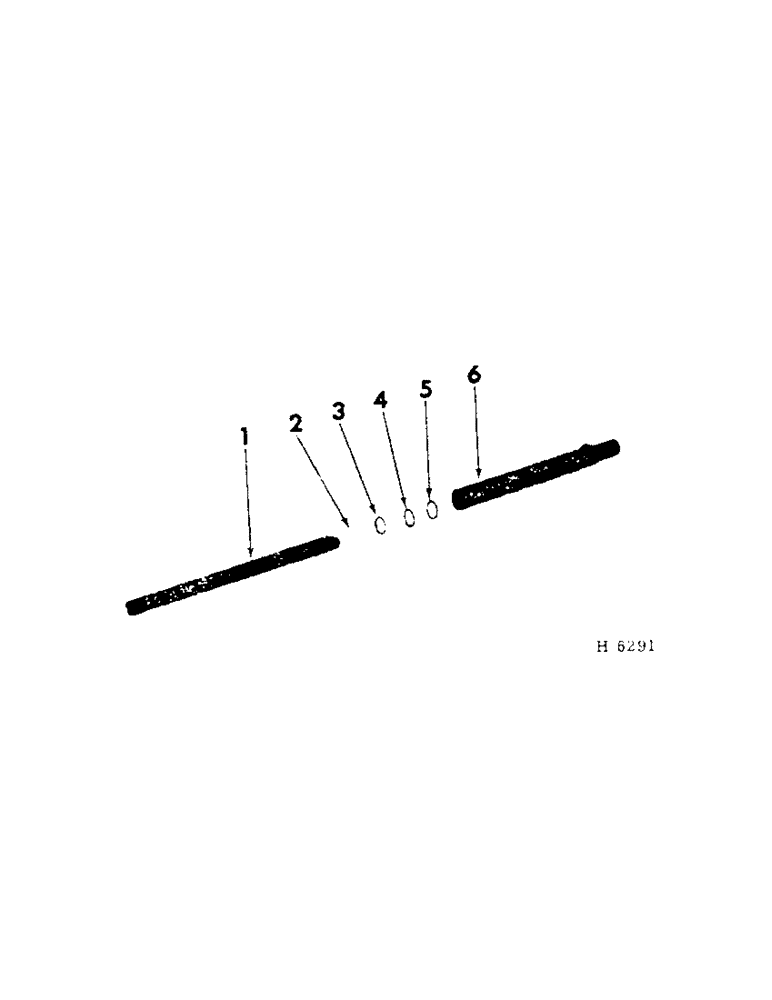

Схема запчастей Case IH 201 - (D-041[B]) - PLATFORM LIFT HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

613661R1

ROD, hyd cyl piston

1шт.

2

RING, snap (order 1-474845R91, pkg) (NSS)

1шт.

3

OIL SEAL (order 1-474845R91, pkg) (NSS)

1шт.

4

WASHER (order 1-474845R91, pkg) (NSS)

1шт.

5

O-RING (order 1-474845R91, pkg) (NSS)

1шт.

6

613673R91

BARREL, hyd cyl

1шт.

584492R1

PIN

1 x 3" std-hd dld

1шт.

Not part of cylinder

1шт.

C-PIN, 1/4 x 1-1/2"

1шт.

Not part of cylinder

1шт.

474845R91

STRIPPER PACKAGE

PACKAGE, hyd cyl rear repair (includes above listed non- servicable items)

1шт.
