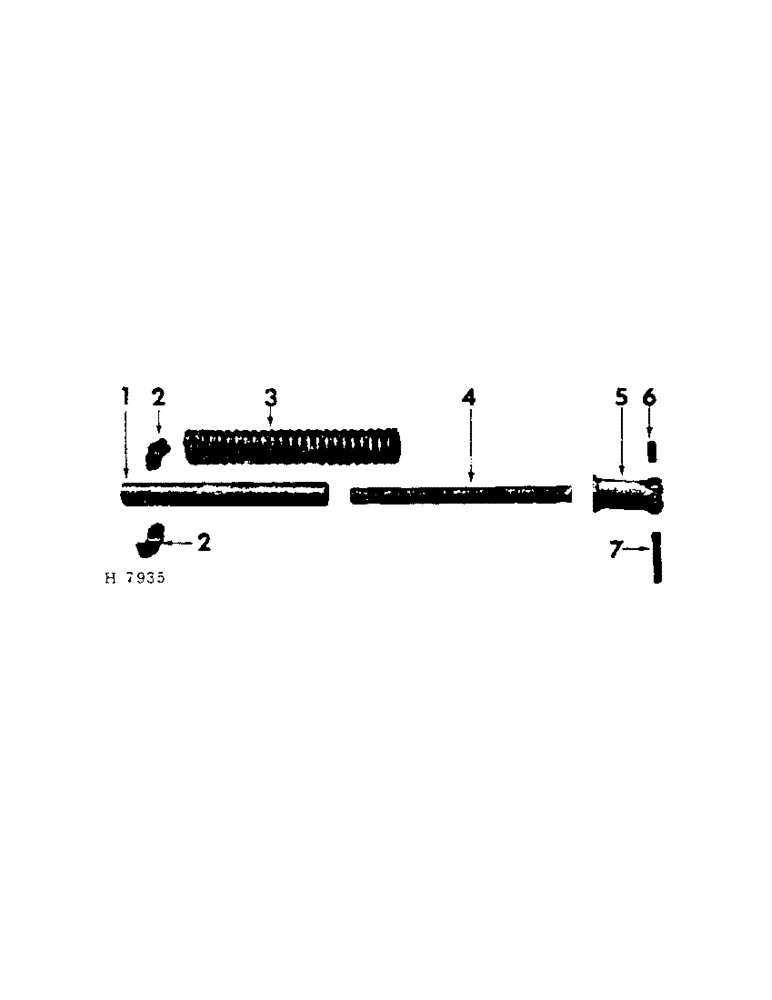

Запчасти Case IH 201 (D-041[A]) - PLATFORM FLOAT SPRING AND STABILIZER (35) - HYDRAULIC SYSTEMS

607994R91

PACKAGE, float spring & stabilizer (available for 12 ft platform equipped w/remote control hydraulic cylinder platform lift or self-contained hydraulic reel & platform lift) (composed of parts listed below)

1шт.

1

607995R1

TUBE, spring guide 1.562" ID, 2.125" OD, 21.88" Length

1шт.

584492R1

PIN

C-PIN, 1/4 x 1-1/2"

1шт.

2

611716R1

CLAMP, spg stop

2шт.

BOLT W/NUT, 1/2 x 3-1/2" cd-pltd mach

2шт.

LK-WASH, 1/2" cd-pltd

2шт.

3

611950R1

SPRING, float

1шт.

4

607996R1

ROD, float spg

1шт.

5

611702R1

CAP, float spg rod

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

611726R1

PIN, rod cap

1шт.

7

607736R1

PIN, rod retaining front

1шт.

C-PIN, 1/4 x 1-1/2"

1шт.

611968R91

CYLINDER, platform lift hyd (1-12 ft; 2-16 ft) (includes parts listed below, unless otherwise noted)

1шт.

584492R1

PIN

1 x 3" std-hd dld

1шт.

Not part of cylinder

1шт.

C-PIN, 1/4 x 1-1/2"

1шт.

Not part of cylinder

1шт.
