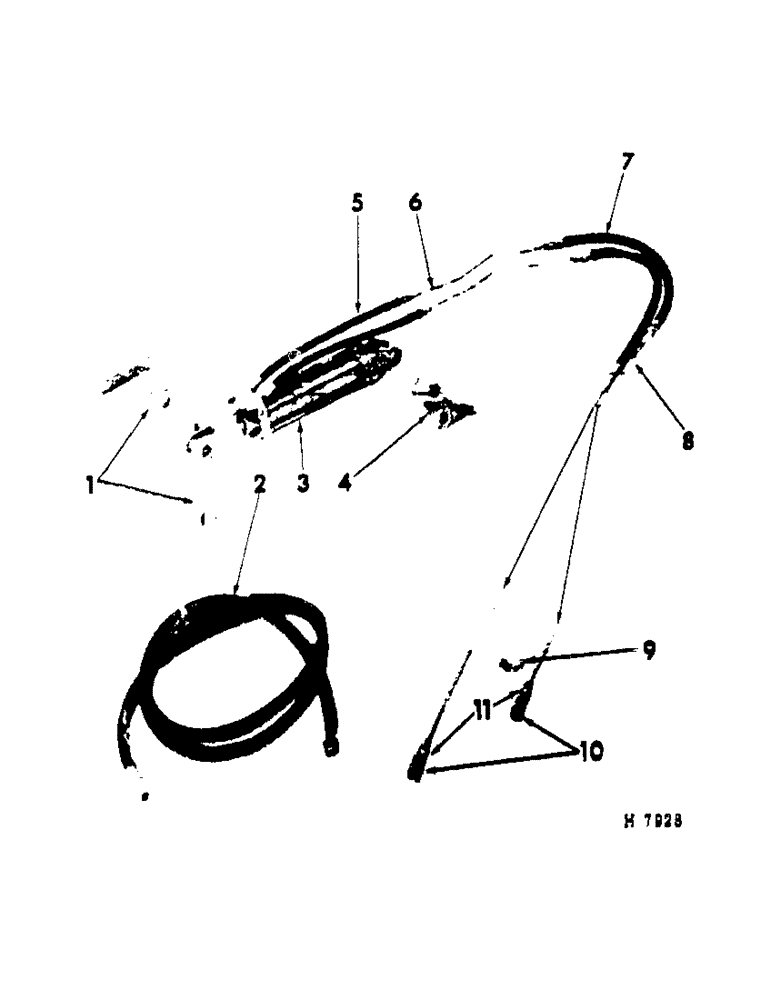

Запчасти Case IH 201 (D-040) - HYDRAULIC LINES, REMOTE CONTROL PLATFORM LIFT (35) - HYDRAULIC SYSTEMS

1

607721R11

SUPPORT, cyl front LH

1шт.

1

607722R11

SUPPORT, cyl front RH

1шт.

BOLT W/NUT, 1/2 x 1" crg

4шт.

LK-WASH, 1/2"

4шт.

2

HOSE, tractor power supply hyd (10 ft length required - to be supplied by dealer)

2шт.

Not supplied on machine from factory

1шт.

3

360994R91

CYLINDER

2-1/2 x 8" remote control hyd cyl w/1/2" pipe port outlets (opt to use 371291R93, cyl) (for service of the components refer to the TC-38A Parts catalog)

1шт.

Not supplied on machine from factory

1шт.

3

371291R93

HYDRAULIC CYLINDER

CYLINDER, 2-1/2 x 8" remote control hyd cyl w/7/8" pipe port outlets (opt to use 360994R91, cyl) (for service of the components refer to the TC-53B parts catalog)

1шт.

Not supplied on machine from factory

1шт.

4

607723R1

ANCHOR, hyd cyl rear

1шт.

584492R1

PIN

1 x 3" std-hd dld

1шт.

C-PIN, 1/4 x 1-1/2"

1шт.

5

607724R91

HOSE, 1/2" pipe thread hyd cyl (when using hyd cyl w/7/8" pipe port outlets it will be necessary to order 2-366064R1, adapter & 2-364885R1, o-ring)

2шт.

6

607725R11

PIPE, hyd cyl hose to jumper hose

2шт.

7

607726R91

HOSE, hitch pivot jumper

2шт.

8

607727R11

PIPE, jumper hose to tractor hose

2шт.

9

607562R1

CLAMP, hyd pipe double

3шт.

SCREW, no. 10-NF x 1/4" slt-rd-hd tapping

3шт.

10

444101

COVER

COUPLING, 1/2" tractor hose adapter

2шт.

10

372413R91

CONNECTOR, ELEC

ADAPTER, 7/8" tractor hose

2шт.

Not supplied on machine from factory

1шт.

11

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR, pipe to tractor hose

2шт.

366064R1

CONNECTOR, ELEC

ADAPTER, hose or cyl to hyd hose (when remote control hyd cyl has 7/8" pipe port outlets)

2шт.

Not supplied on machine from factory

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hose adapter (when remote control hyd cyl has 7/8" pipe port outlets)

4шт.

Not supplied on machine from factory

1шт.
