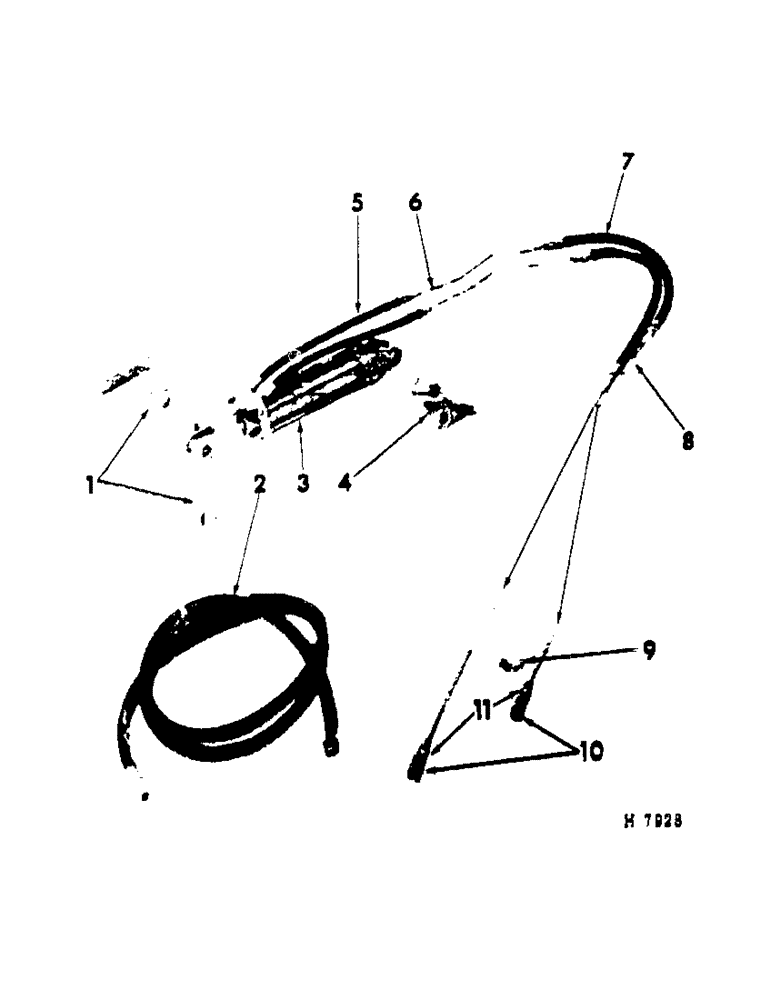

Запчасти Case IH 201 (D-039) - HYDRAULIC LINES, REEL LIFT (35) - HYDRAULIC SYSTEMS

1

607731R1

BRACKET, hyd cyl mounting upr

1шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

LK-WASH, 3/8" cd-pltd

2шт.

2

CYLINDER, reel lift hyd (refer to "reel lift hydraulic cylinder")

1шт.

PIN, 1/2 x 3-9/16" std-hd dld

1шт.

PIN, 9/16 x 3" std-hd dld

1шт.

C-PIN, 3/16 x 1"

2шт.

3

9402825

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

45deg. cyl port (prior to 1964)

1шт.

4

607561R1

CLAMP, hyd line, Serial Range: (prior-1964)

1шт.

SCREW, no. 10-NF x 1/4" slt-rd-hd cd-pltd tapping

2шт.

5

PIPE, cyl to hose hyd (prior to 1964 order 2-608762R1, clamp & 1-608761R91, hose)

1шт.

6

607734R91

HOSE, reel lift hyd, Serial Range: (prior-1964)

1шт.

7

608762R1

CLAMP, hyd line (1964 & since)

2шт.

SCREW, no. 10-NF x 1/4" slt-rd-hd cd-pltd tapping

2шт.

8

608761R91

HOSE, reel lift cyl (1964 & since)

1шт.
