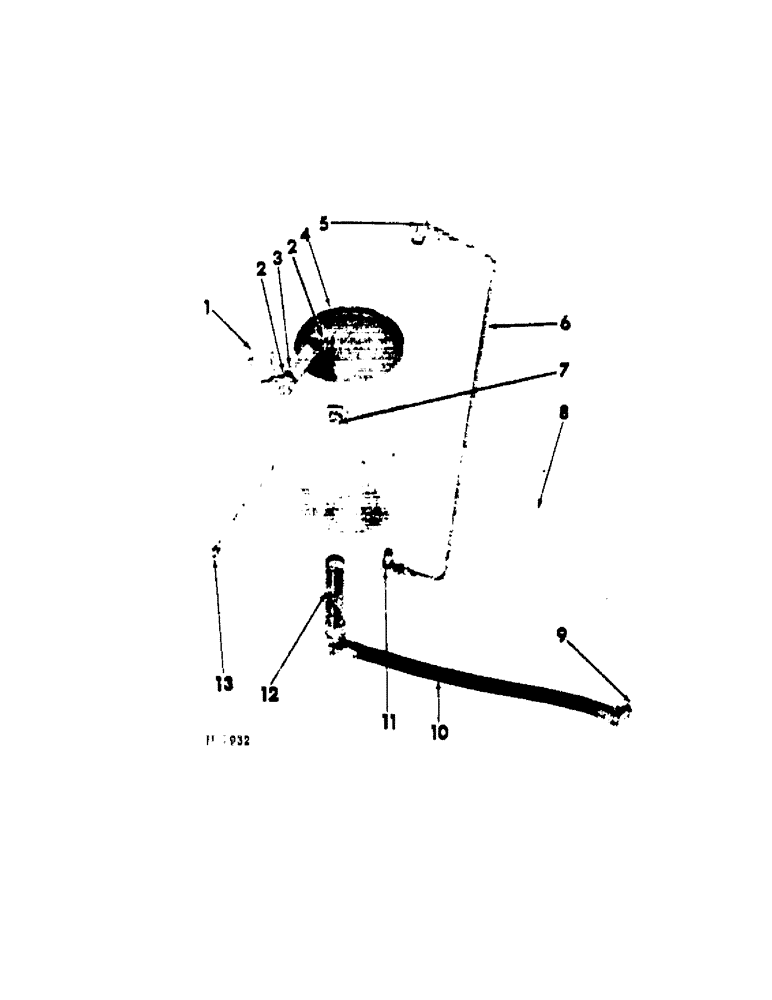

Запчасти Case IH 201 (D-038) - HYDRAULIC LINES, RESERVOIR TO VALVE AND PUMP (35) - HYDRAULIC SYSTEMS

1

5047EX

CAP

reservoir filler

1шт.

2

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 - 90deg. filler pipe

1шт.

3

190724

NIPPLE, 3/4 x 4" filler pipe Nipple, 3/4" NPT x 4"

1шт.

4

607744R91

RESERVOIR, hyd oil

1шт.

5

613532R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

90deg. reservoir line

1шт.

6

607743R11

PIPE, reservoir to valve line

1шт.

7

219199

PLUG

1/2" sq-hd pipe (opt w/102858)

1шт.

7

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe (Opt w/219199) Sq Hd, 1/2"-14 NPTF

1шт.

8

610768R2

STRAP, oil reservoir retaining

2шт.

BOLT W/NUT, 3/8 x 3/4" cd-pltd crg

4шт.

LK-WASH, 3/8" cd-pltd

4шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

reservoir to pump line

1шт.

10

607746R91

HOSE, reservoir to hyd pump

1шт.

11

610775R1

ELBOW

90deg. reservoir valve line

1шт.

12

619037R91

STRAINER ASSY.

STRAINER, reservoir oil

1шт.

13

607745R1

BAR, oil reservoir anchor

2шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

4шт.

LK-WASH, 3/8" cd-pltd

4шт.
