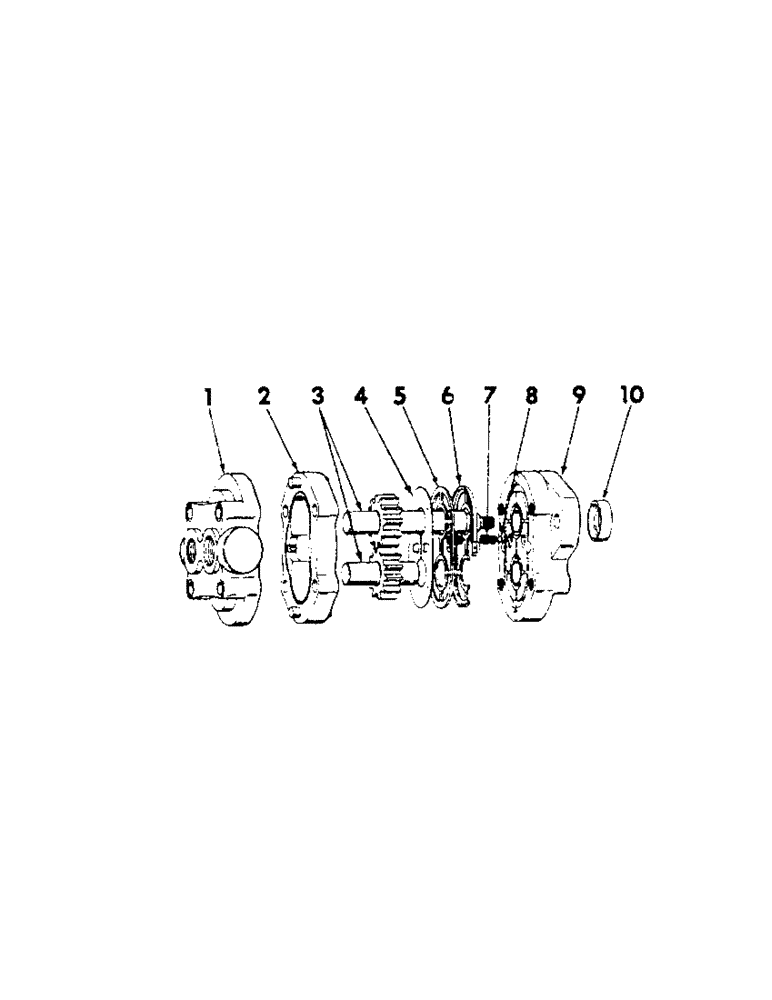

Запчасти Case IH 201 (D-037) - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

607748R91

PUMP, hydraulic (includes parts listed, unless otherwise noted)

1шт.

BOLT W/NUT, 3/8 x 1-3/8" cd-pltd mach

2шт.

WASH, 13/32 x 3/4 x 16 ga cd-pltd

1шт.

LK-WASH, 3/8" cd-pltd

2шт.

1

617371R91

PLATE, pump rear

1шт.

BOLT, 5/16 x 2-1/2" type 2

4шт.

2

614745R91

BODY, hyd pump

1шт.

3

614748R91

PACKAGE, drive & idler gear

1шт.

614749R1

KEY, 1/8 x 1/8 x 11/16"

1шт.

125233

NUT, 3/8"-NF slt-cd-pltd

RING

1шт.

469668R1

WASHER

WASH, 13/32 x 3/4 x 16 ga cd-pltd

1шт.

C-PIN, 1/16 x 3/4"

1шт.

4

DIAPHRAGM (order 1-614750R91, pkg) (NSS)

1шт.

5

GASKET (order 1-614750R91, pkg) (NSS)

1шт.

6

SEAL (order 1-614750R91, pkg) (NSS)

1шт.

7

351523R1

SPRING, hyd pump

2шт.

8

16007R1

BALL

pump spring

2шт.

9

614746R91

PLATE, pump front

1шт.

10

381001R91

OIL SEAL

SEAL, pump shaft

1шт.

614750R91

KIT

PACKAGE, pump gasket & seal service composed of: (2) ball 16007R1, (1) diaphragm (NSS), (1) gasket (NSS), (1) seal 381001R91, (1) seal (NSS), (2) spring 371523R1

1шт.

611966R92

VALVE, hyd control (composed of parts listed below, unless otherwise noted)

1шт.

BOLT W/NUT, 5/16 x 2-1/4" cd-pltd crg

1шт.

Not part of hydraulic pump or valve

1шт.

BOLT W/NUT, 5/16 x 2-3/4" cd-pltd crg

1шт.

Not part of hydraulic pump or valve

1шт.

LK-WASH, 5/16" cd-pltd

2шт.

Not part of hydraulic pump or valve

1шт.
