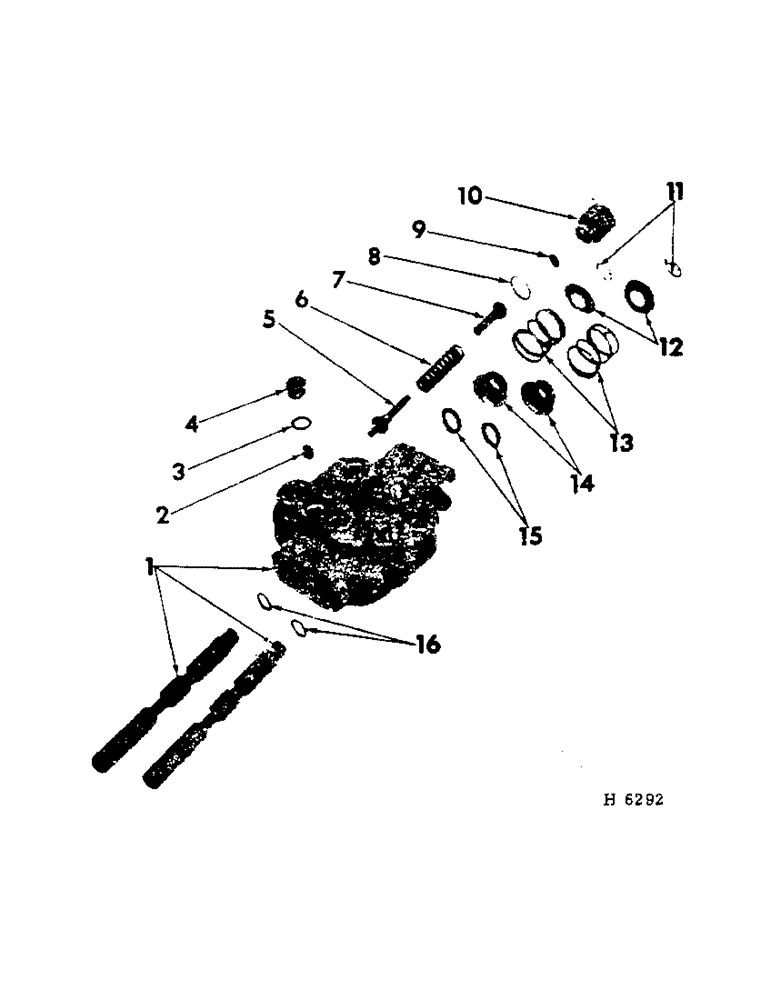

Запчасти Case IH 201 (D-037[A]) - HYDRAULIC CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

HOUSING & SPOOL, valve (order 1-611966R92, valve) (NSS)

1шт.

2

BALL, lift check (NSS)

2шт.

Order 2-607431R91, repair kit

1шт.

3

O-RING, check plug (NSS)

2шт.

Order 2-607431R91, repair kit

1шт.

4

613604R1

PLUG, check ball

2шт.

5

613601R91

PIN, relief valve

1шт.

6

592675R1

SPRING, relief valve

1шт.

7

613600R1

GUIDE, relief valve

1шт.

8

O-RING, valve cap (NSS)

1шт.

Order 2-607431R91, repair kit

1шт.

9

613599R1

SHIM, relief valve

1шт.

10

613605R1

CAP, relief valve

1шт.

11

RING, spool retaining (NSS)

2шт.

Order 2-607431R91, repair kit

1шт.

12

613602R1

WASHER

spool shallow

2шт.

13

613598R1

SPRING

spool

2шт.

14

613603R1

WASHER, spool deep

2шт.

15

PACKING, spool

2шт.

Order 2-607431R91, repair kit

1шт.

16

O-RING, spool

2шт.

Order 2-607431R91, repair kit

1шт.

607431R91

KIT, valve seal repair (composed of all parts listed w/notation)

1шт.

Order 2-607431R91, repair kit

1шт.
