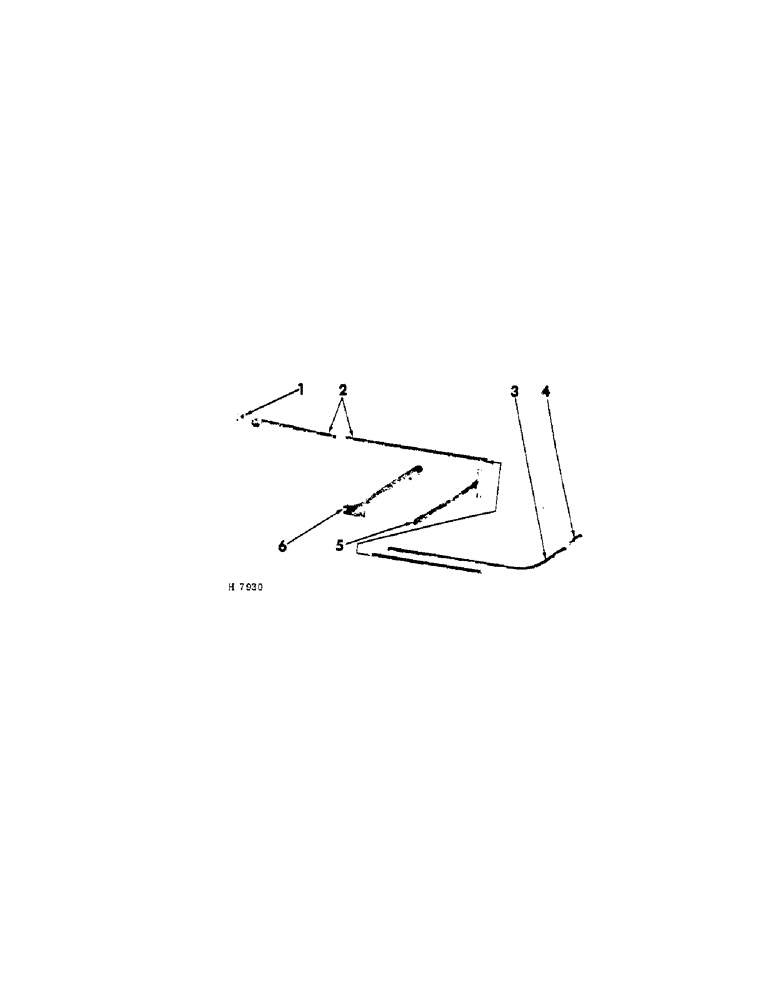

Запчасти Case IH 201 (D-018[A]) - HYDRAULIC VALVE CONTROL HANDLES (35) - HYDRAULIC SYSTEMS

1

618696R1

KNUCKLE, control lever valve

1шт.

PIN, 3/8 x 1-3/4" slt-spg

2шт.

2

607756R11

EXTENSION, control lever rod

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd mach

2шт.

LK-WASH, 5/16" cd-pltd

2шт.

3

607757R1

ROD, control lever

1шт.

4

607714R1

GRIP, control lever rod

1шт.

5

607758R91

PIPE, control lever support

1шт.

SCREW, 3/8 x 1" sq-hd cup-pt set

2шт.

NUT, 3/8" jam

2шт.

6

607715R91

STAND, support pipe, Serial Range: (prior-1964)

1шт.

6

608759R91

STAND, support pipe (1964 & since)

1шт.

BOLT W/NUT, 3/8 x 1" crg (prior, Serial Range: -1964)

2шт.

BOLT W/NUT, 1/2 x 1-1/4" mach (1964 & since)

2шт.

LK-WASH, 3/8"

2шт.

LK-WASH, 1/2"

2шт.
