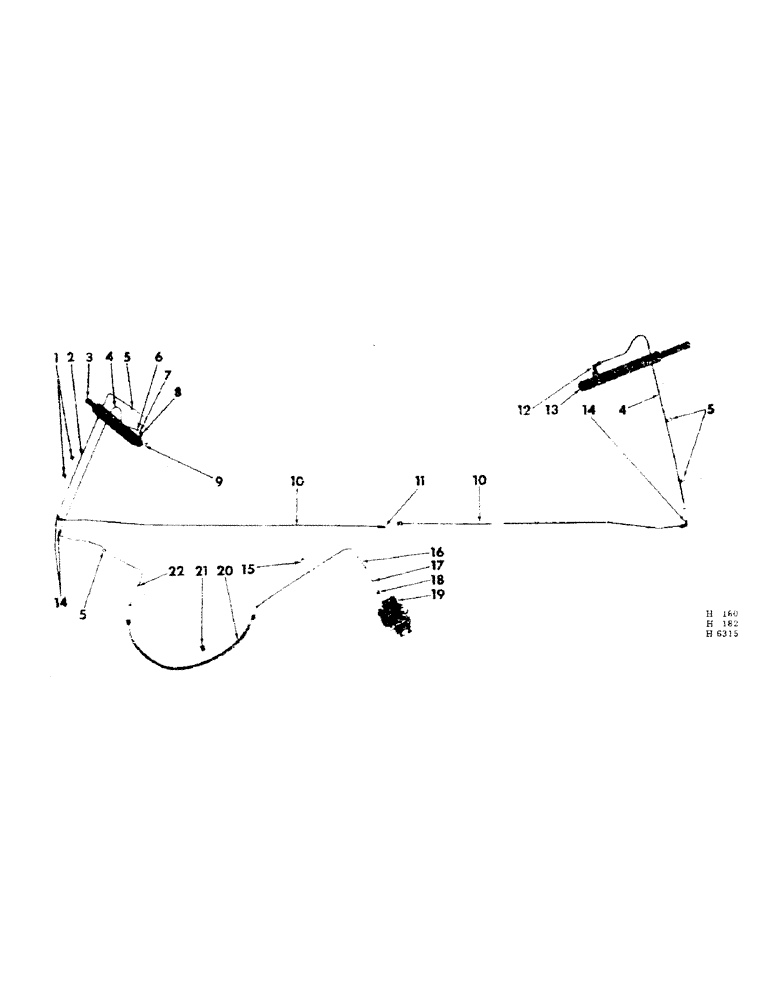

Запчасти Case IH 201 (A-119) - REEL LIFT HYDRAULIC LINES, AUGER PLATFORM, NOT CANVAS OR PEA BAR PLATFORM (35) - HYDRAULIC SYSTEMS

1

609796R1

CLAMP, cyl inlet & outlet pipe

2шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

2шт.

LK-WASH, 5/16" cd-pltd

2шт.

2

609792R11

PIPE, left cyl outlet

1шт.

3

CYLINDER, reel lift LH (refer to "reel lift hydraulic cylinder LH")

1шт.

4

609791R11

PIPE, cyl inlet

2шт.

5

140567

CLIP

outlet pipe

4шт.

BOLT W/NUT, 5/16 x 1/2" cd-pltd mach

3шт.

BOLT, 5/16 x 5/8" cd-pltd crg

1шт.

LK-WASH, 5/16"

4шт.

6

9403527

TUBE NUT,37 Degree, 9/16"-18, Type B

NUT, 3/8" hyd inlet reducer

1шт.

7

9403398

REDUCER,37 Degree, 3/8" x 1/4" Tube

3/8 x 1/4" inlet pipe

1шт.

8

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

cd-pltd inlet pipe 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pipe elbow

1шт.

9

9402823

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

45deg. cd-pltd outlet pipe

1шт.

10

609793R12

PIPE, 10 ft platform rear hyd 1" OD, 59.12, 1.5" Length

2шт.

10

609794R12

PIPE, 12 ft platform rear hyd

2шт.

10

609795R12

PIPE, 14 ft platform rear hyd

2шт.

11

9402784

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR, 1/4" cd-pltd rear pipes

1шт.

12

612045R1

ELBOW

90deg. cd-pltd right cyl

1шт.

13

CYLINDER, reel lift RH (refer to "reel lift hydraulic cylinder RH")

1шт.

14

9402940

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

90deg. cd-pltd rear hyd line

3шт.

15

105245

CLIP

hyd line

2шт.

SCREW W/NUT, 1/4 x 1/2" slt-rd-hd

2шт.

LK-WASH, 1/4"

2шт.

16

612030R11

PIPE, valve to reel lift hose 0.25" OD, 6.875" Length

1шт.

17

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR, reel lift line

1шт.

18

127875

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

BUSHING, valve connector reducer

1шт.

19

VALVE, hyd control (refer to "hydraulic control valve")

1шт.

20

612039R91

HOSE, lift cyl line

1шт.

21

140573

CLIP, no. 10 closed cyl hose

1шт.

22

609788R11

PIPE, 10 ft platform cyl extension

1шт.

22

609789R11

PIPE, 12 ft platform cyl extension

1шт.

22

609790R11

PIPE, 14 ft platform cyl extension

1шт.
