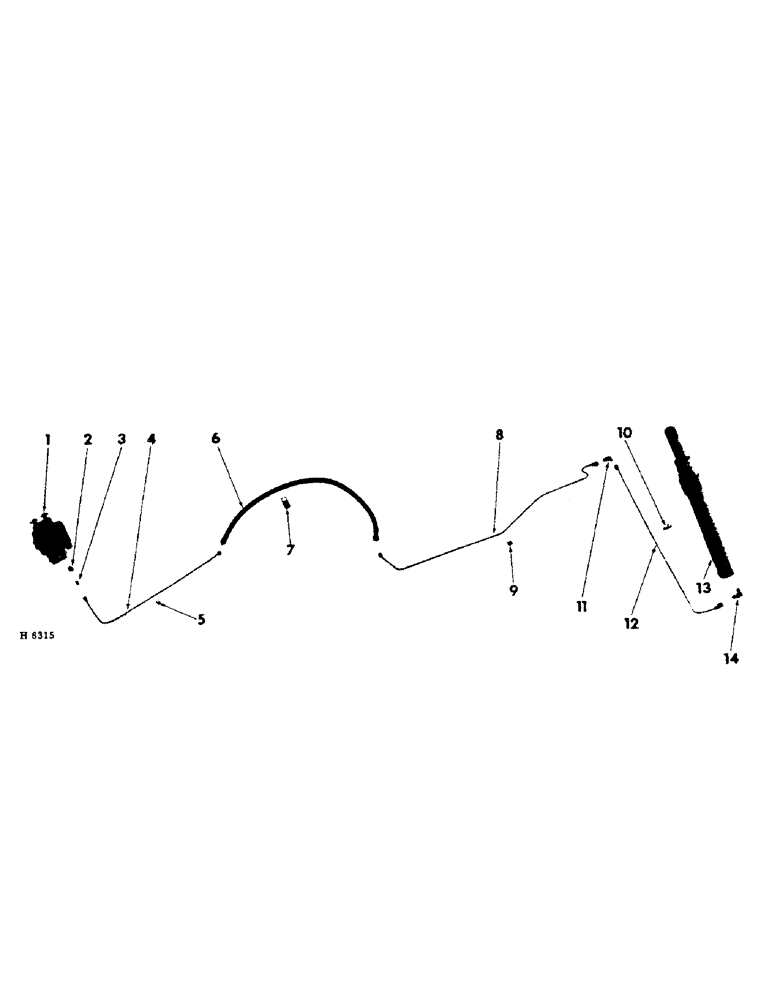

Запчасти Case IH 201 (A-118) - REEL LIFT HYDRAULIC LINES, CANVAS AND PEA BAR PLATFORM, NOT AUGER PLATFORM (35) - HYDRAULIC SYSTEMS

1

VALVE, hyd control (refer to "hydraulic control valve")

1шт.

2

127875

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

BUSHING, valve connector reducer

1шт.

3

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR, reel lift line

1шт.

4

612030R11

LINE, valve & reel cyl hose 0.25" OD, 6.875" Length

1шт.

5

105245

CLIP

no. 4 closed cyl line

4шт.

SCREW W/NUT, 1/4 x 1/2" slt-rd-hd

2шт.

SCREW, 1/4 x 1/2" slt-rd-hd tapping

2шт.

LK-WASH, 1/4"

4шт.

6

612039R91

HOSE, lift cyl line & extension

1шт.

7

140573

CLIP, no. 10 closed cyl hose

1шт.

8

612041R11

LINE, 10 ft platform cyl inlet

1шт.

8

612042R11

LINE, 12 ft platform cyl inlet

1шт.

8

612043R11

LINE, 14 ft platform cyl inlet

1шт.

8

612044R11

LINE, 16 ft platform cyl inlet 0.25" OD, 37, 15" Length

1шт.

9

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

CLIP, no. 4 closed extension line

1шт.

10

140567

CLIP

no. 4 closed extension line

2шт.

11

9402940

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

90deg. extension & inlet line

1шт.

12

612040R11

LINE, cyl inlet extension 0.25" OD, 37-1" Length

1шт.

13

CYLINDER, reel lift (refer to "reel lift hydraulic cylinder")

1шт.

14

612045R1

ELBOW

90deg. reel lift cyl

1шт.

612682R91

CYLINDER, reel lift hyd (includes parts listed below, unless otherwise noted)

1шт.
