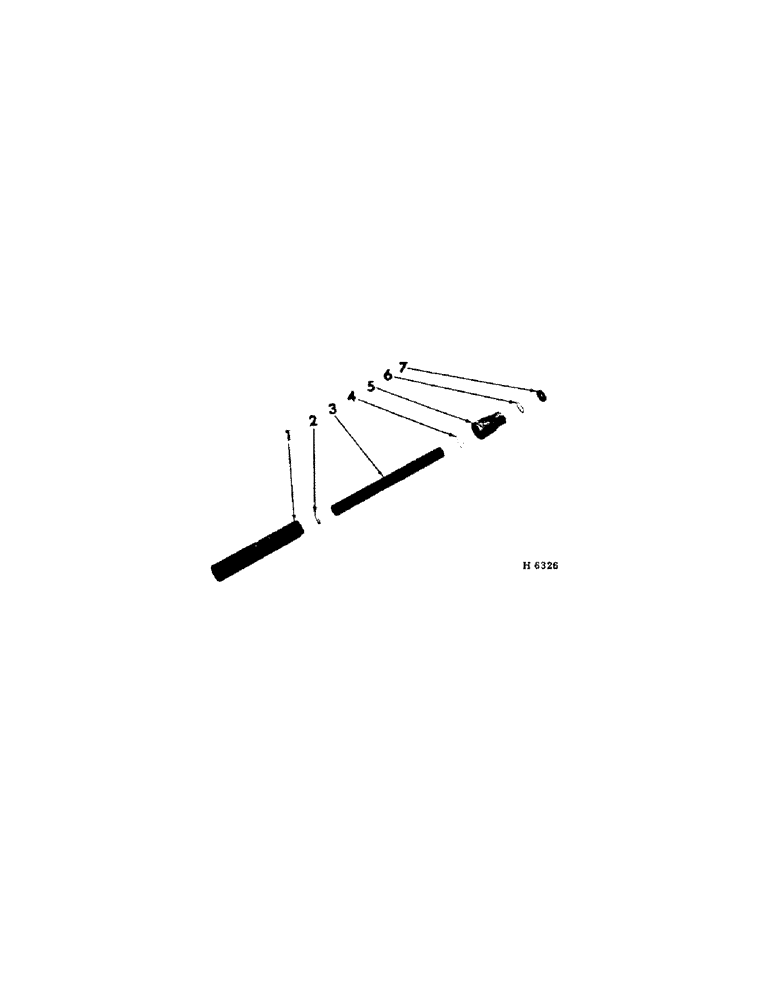

Запчасти Case IH 201 (A-118[A]) - REEL LIFT HYDRAULIC CYLINDER, CANVAS AND PEA BAR PLATFORM, NOT AUGER PLATFORM (35) - HYDRAULIC SYSTEMS

1

612679R11

SLEEVE, reel lift hyd cyl

1шт.

Q3550

PIN

1/2 x 3-1/8" std-hd dld

1шт.

Not part of cylinder

1шт.

C-PIN, 3/16 x 1"

1шт.

Not part of cylinder

1шт.

2

612680R1

RING, retaining

1шт.

3

612678R1

ROD, hyd cyl piston

1шт.

W2152

PIN

1/2 x 3-7/8" std-hd dld

1шт.

Not part of cylinder

1шт.

178373R1

WASHER

WASH, 17/32 x 1 x 16 ga cd-pltd

1шт.

Not part of cylinder

1шт.

C-PIN, 3/16 x 1"

1шт.

Not part of cylinder

1шт.

4

612681R1

RING

O-RING, piston rod brg inner

1шт.

5

612676R1

BEARING, piston rod

1шт.

6

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

piston rod brg outer

1шт.

7

570449R91

SEAL

OIL SEAL, piston rod brg

1шт.
