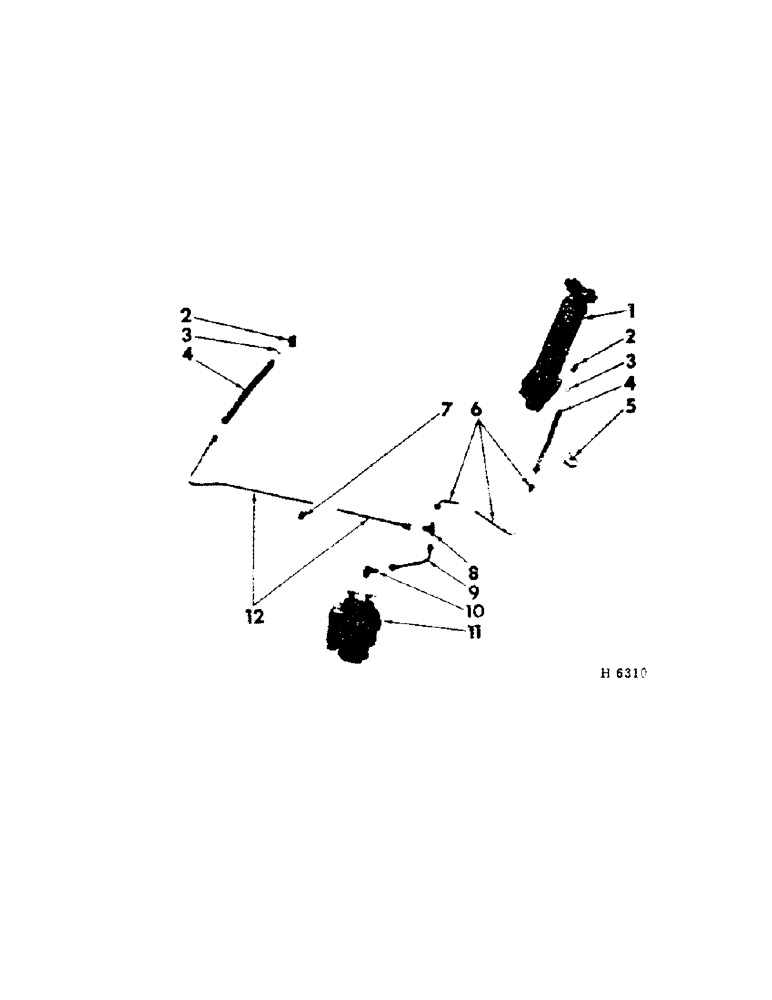

Запчасти Case IH 201 (A-117) - PLATFORM LIFT HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

CYLINDER, platform lift hyd (refer to "platform lift hydraulic cylinder")

1шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

lift cyl 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd cylinder elbow

2шт.

4

611937R91

HOSE ASSY.

HOSE, lift cyl hyd

2шт.

5

611975R1

CLIP, hyd hose closed

2шт.

NUT, 1/2"

2шт.

LK-WASH, 1/2"

2шт.

6

611939R11

LINE, platform cyl hyd RH 0.375" OD, 66.375" Length

1шт.

7

105247

CLIP, no. 6 closed hyd line

4шт.

SCREW, 1/4 x 1/2" slt-rd-hd tapping

4шт.

8

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3 way feeder line

1шт.

9

611940R11

LINE, valve to hyd cyl lines 0.375" OD, 5.437" Length

1шт.

10

610775R1

ELBOW

90deg., Serial Range: valve-line

1шт.

11

VALVE, hyd control (refer to "hdyraulic control valve")

1шт.

12

611938R11

LINE, lift cyl LH

1шт.

611968R91

CYLINDER, platform lift hyd (composed of all parts listed below unless otherwise noted)

2шт.

584492R1

PIN

1 x 3" std-hd dld

2шт.

C-PIN, 1/4 x 1-3/4"

2шт.
