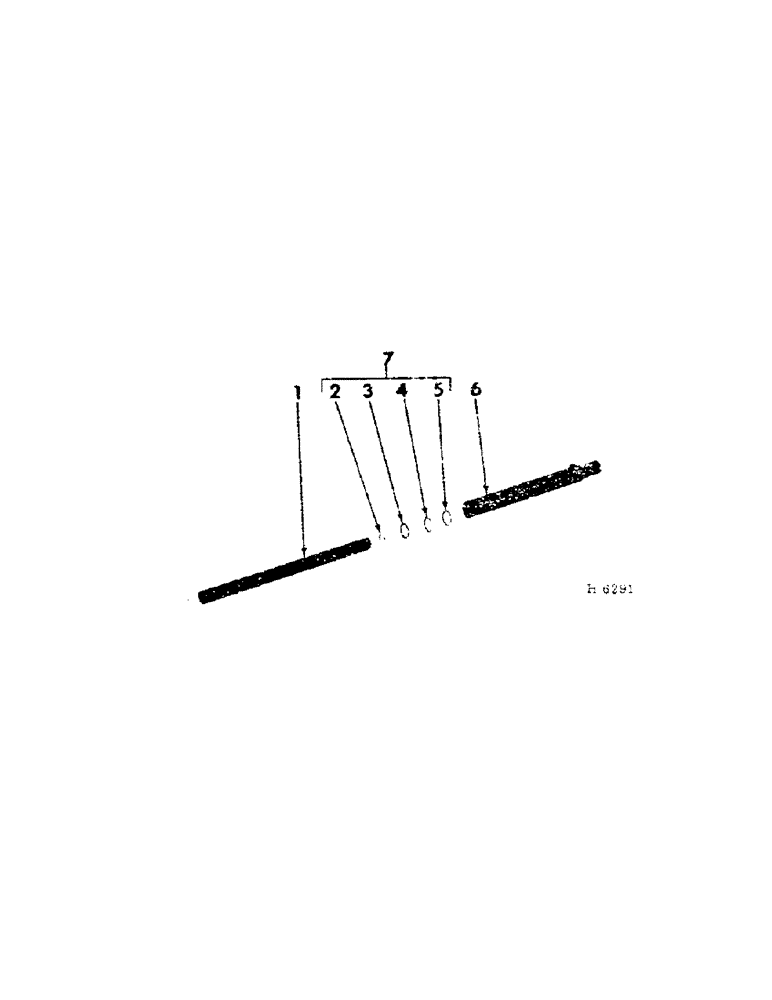

Запчасти Case IH 201 (A-117[B]) - HYDRAULIC VALVE FOOT PEDAL (35) - HYDRAULIC SYSTEMS

1

97265R1

SPACER, foot pedal (Auger Platform)

1шт.

1

615977R1

SPACER, foot pedal (Canvas or Pea Bar Platform)

1шт.

2

611866R11

PEDAL, hyd valve foot

1шт.

PO15464

HEADED PIN,3/8" x 4"

PIN, 3/8 x 4" std-hd dld

1шт.

C-PIN, 1/8 x 3/4"

1шт.

BOLT, 3/8 x 2" sq-hd mach (pedal stop)

1шт.

3

611987R1

PIN, hyd valve spool

1шт.

615002R1

WASHER

WASH, 13/64 x 1/2 x 16 ga

2шт.

C-PIN, 1/16 x 1/2"

1шт.
